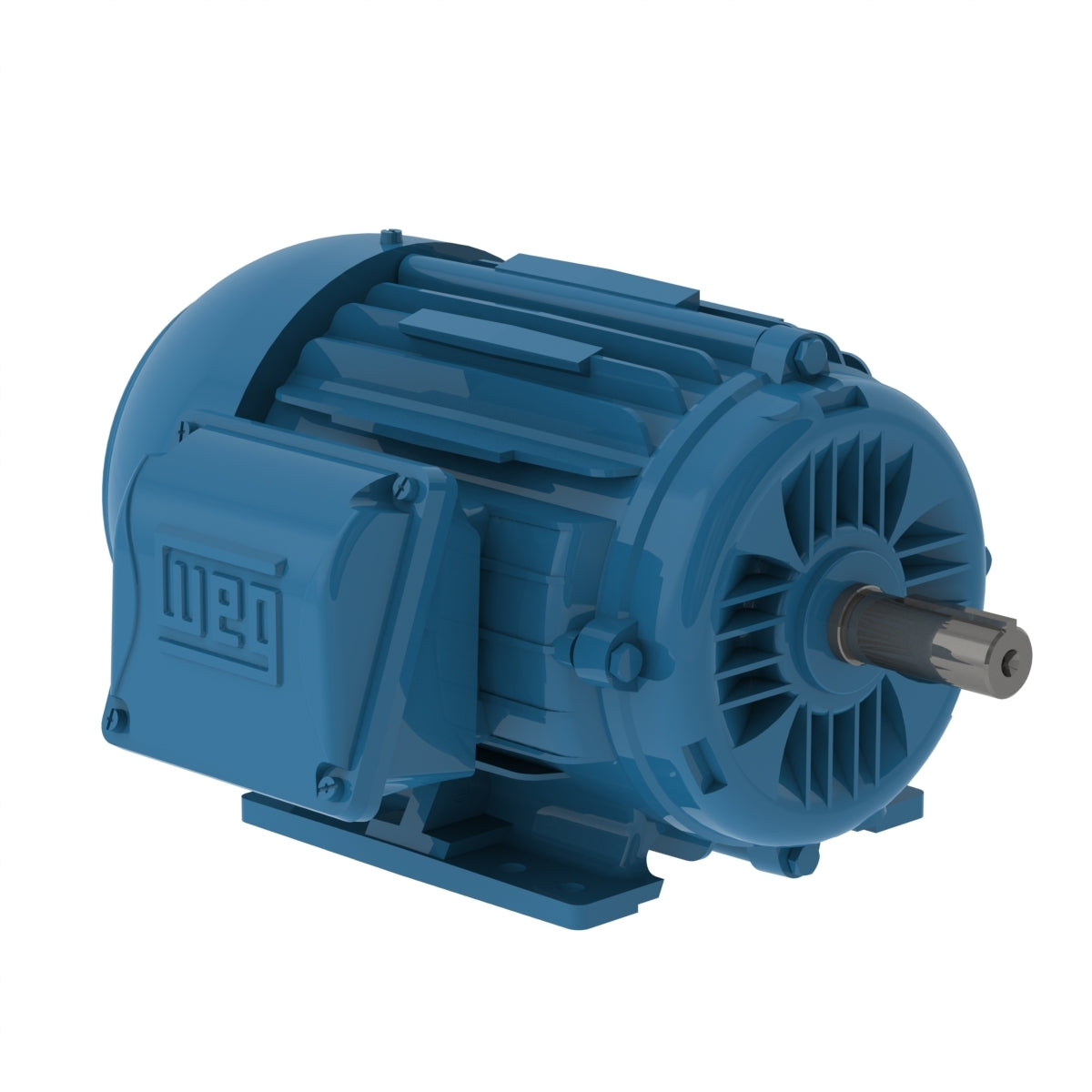

Weg Electric 00118XT3E143TC, 1 Hp, 1800 Rpm, 143/5TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Flameproof Motor Standard Efficiency.

00118XT3E143TC, 1 Hp, 1800 Rpm, 143/5TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Flameproof Motor Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
