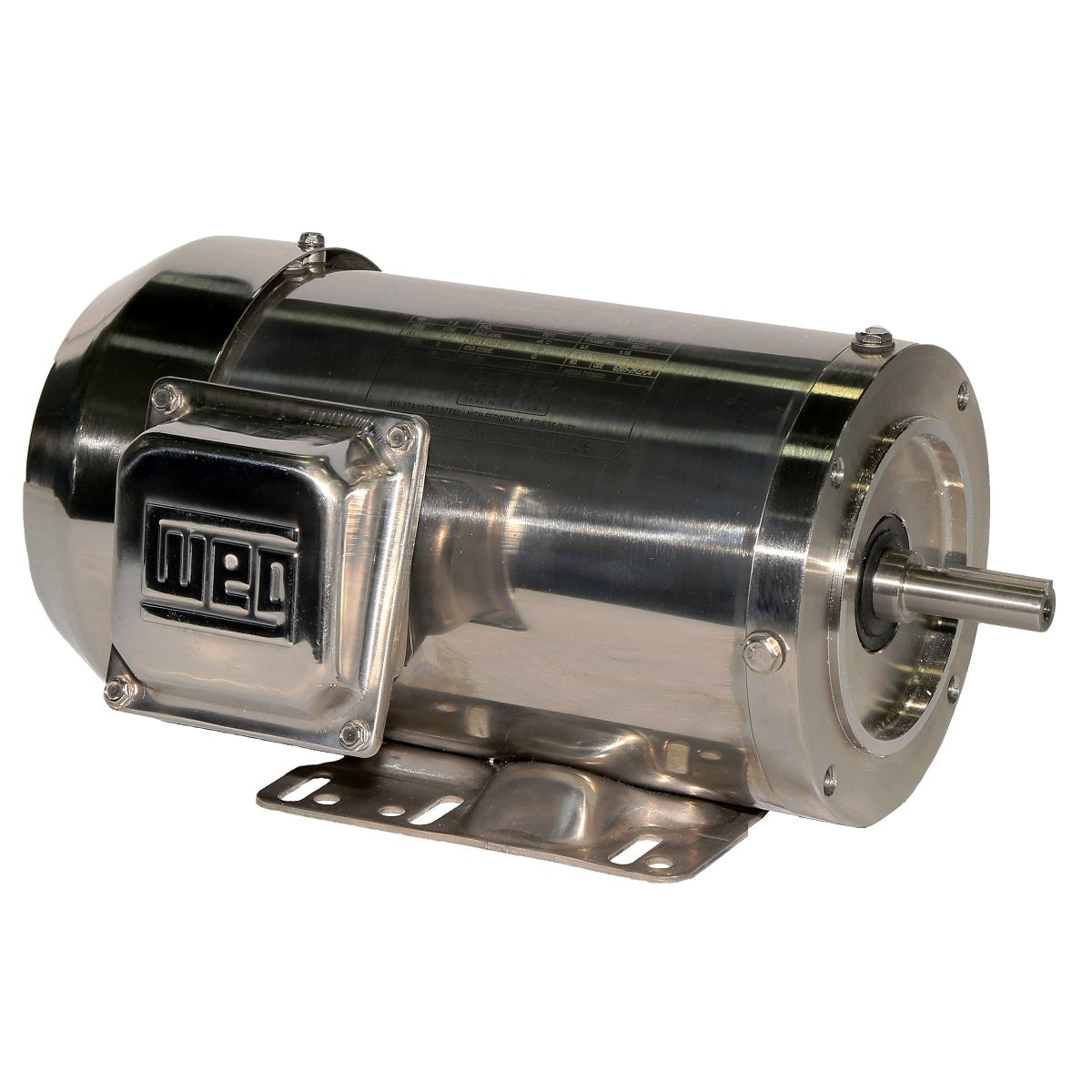

Weg Electric 00136ET3ESS56C, 1 Hp, 3600 Rpm, 56C FR, 230/460//380 Vac, TEFC, Foot-mounted, Shark NEMA Premium Efficiency.

00136ET3ESS56C, 1 Hp, 3600 Rpm, 56C FR, 230/460//380 Vac, TEFC, Foot-mounted, Shark NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TEFC
Number of poles 2
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600 rpm
