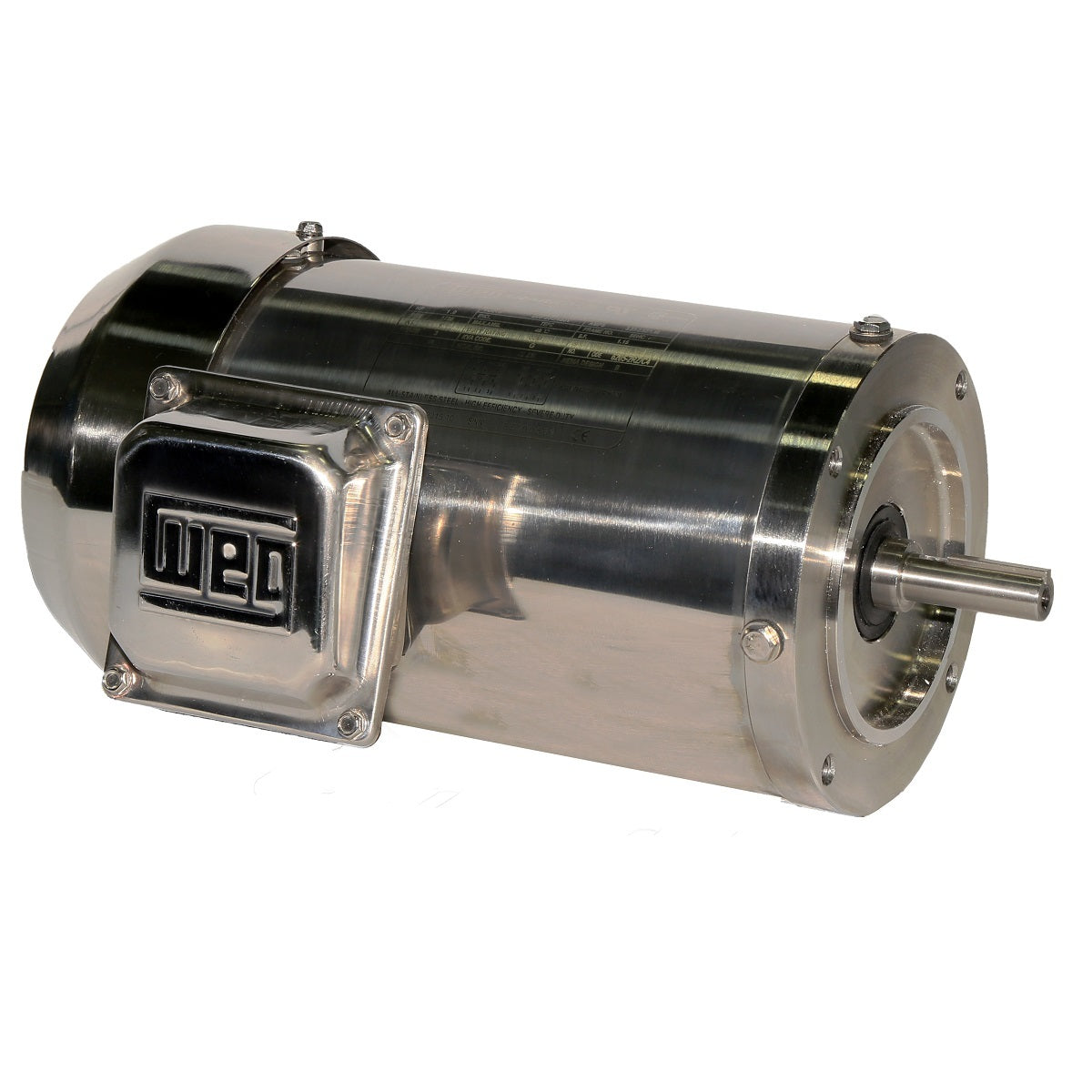

Weg Electric 00136ET3ESS56CFL, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency.

00136ET3ESS56CFL, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, TEFC, Footless, Shark NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TEFC
Number of poles 2
Mounting Footless
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600 rpm

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Frequency 60 Hz
Output rating 1 HP
Enclosure TEFC
Frame Material Stainless steel
Flange C
Mounting Footless
Motor Application Shark
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 3600 rpm
Number of Poles 2
