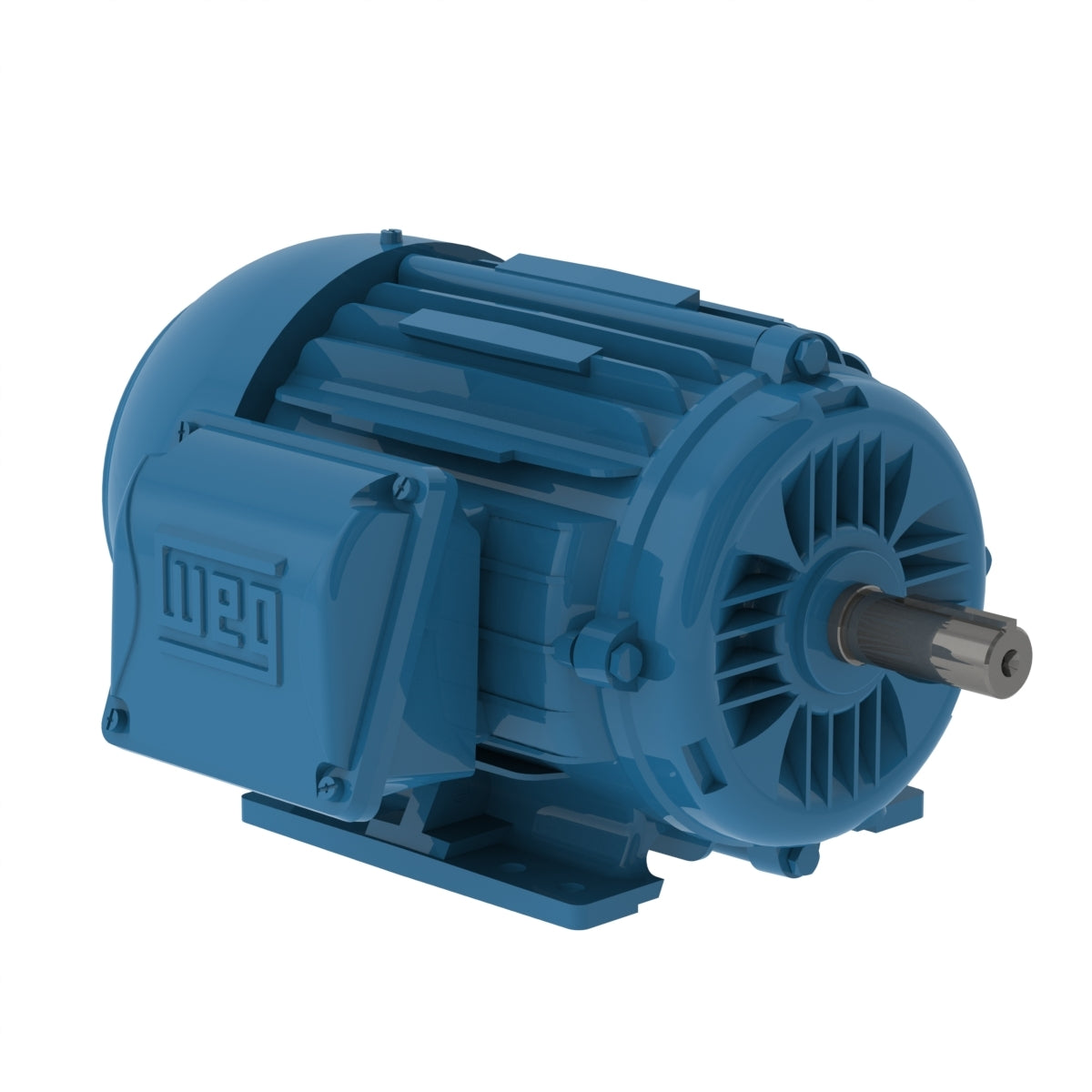

Weg Electric 00136ET3H143T-W22, 1 Hp, 3600 Rpm, 143/5T FR, 575 Vac, TEFC, 3PH, Foot-mounted, NEMA Premium Efficiency.

00136ET3H143T-W22, 1 Hp, 3600 Rpm, 143/5T FR, 575 Vac, TEFC, 3PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
