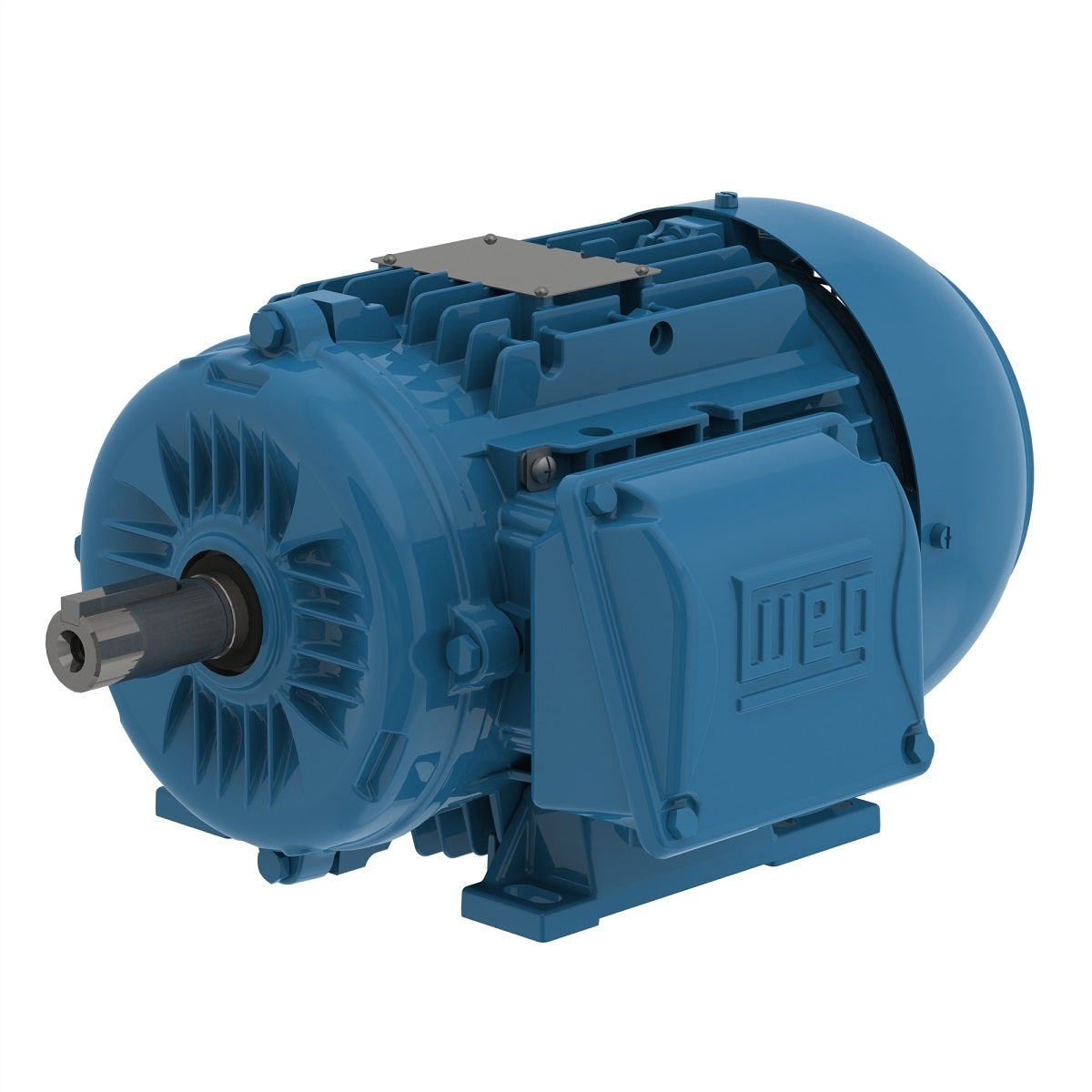

Weg Electric 00136ET3WAL80-W22, 1 Hp, 3600 Rpm, 80 FR, 460//220-240/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Premium Efficiency.

00136ET3WAL80-W22, 1 Hp, 3600 Rpm, 80 FR, 460//220-240/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//220-240/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 80
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3450 rpm
Slip 4.17 %
Rated voltage 460 V
Rated current 2.03 A
L. R. Amperes 17.1 A
LRC 8.4
No load current 1.20 A
Rated torque 2.28 ft.lb
Locked rotor torque 530 %
Breakdown torque 520 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 0.0356 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
