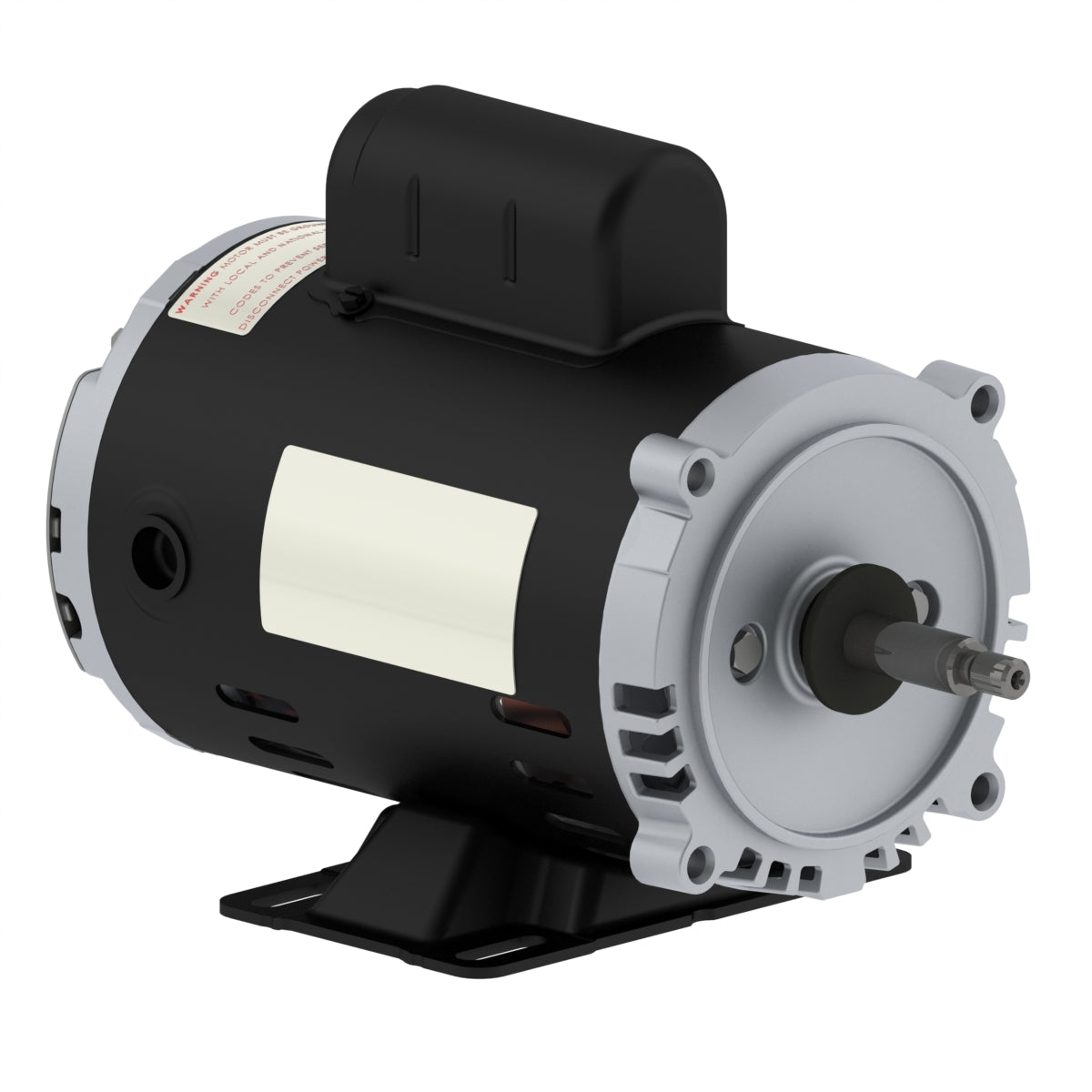

Weg Electric 00136OS1BCD56-S, 1 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, ODP, Foot-mounted, Rolled Steel Compressor Duty.

00136OS1BCD56-S, 1 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, ODP, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 115/208-230 V
Rated current 13.2/6.50-6.60 A
L. R. Amperes 76.6/37.7-38.3 A
LRC 5.8x(Code K)
No load current 10.0/4.31-5.00 A
Rated torque 1.51 ft.lb
Locked rotor torque 165 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0394 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.00 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
