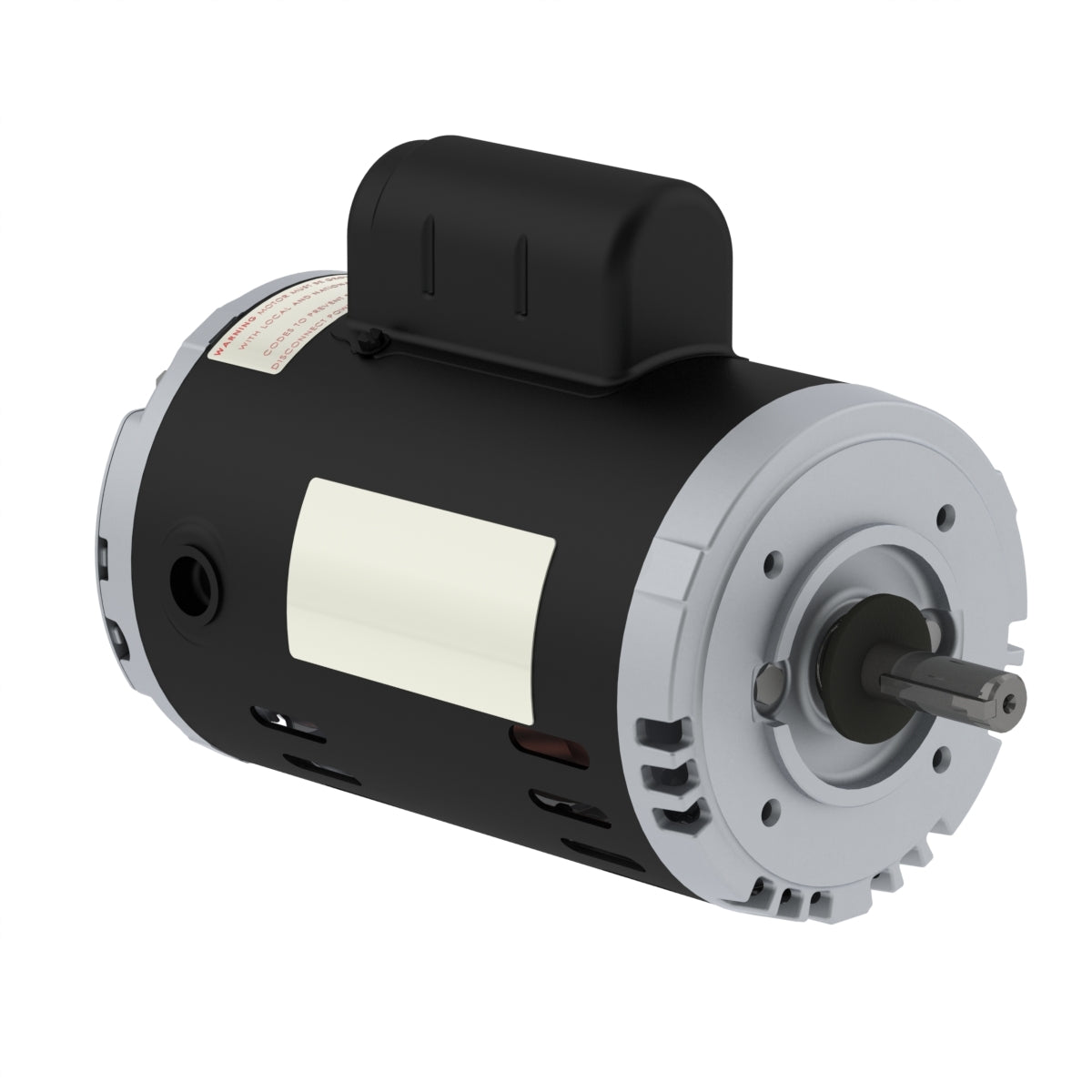

Weg Electric 00136OS1BJPR56C-S, 1 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, ODP, 1 Ph, Footless, Rolled Steel.

00136OS1BJPR56C-S, 1 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, ODP, 1 Ph, Footless, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 12.8/7.08-6.40 A
L. R. Amperes 88.3/48.9-44.2 A
LRC 6.9x(Code M)
No load current 8.40/3.62-4.20 A
Rated torque 1.50 ft.lb
Locked rotor torque 260 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0472 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
