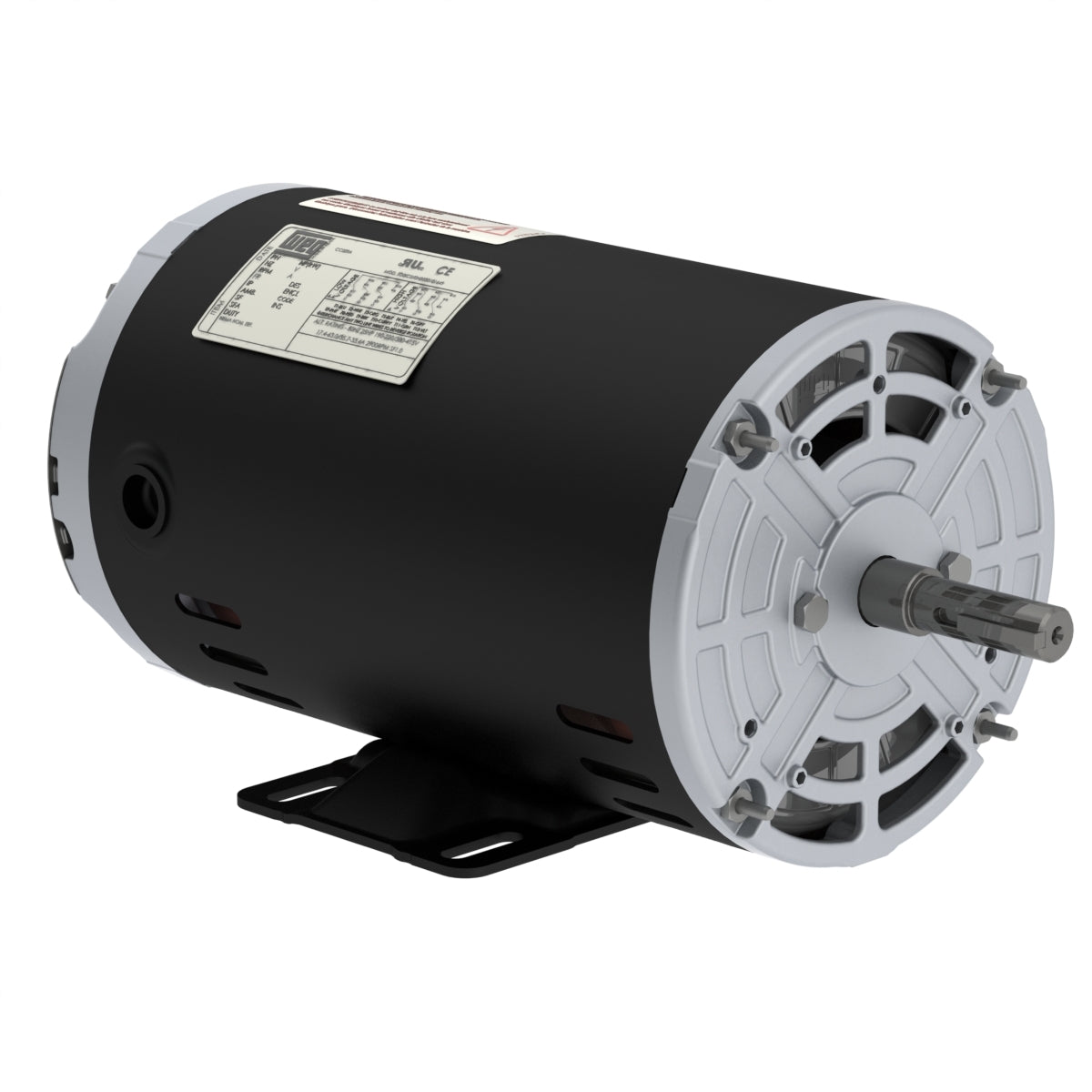

Weg Electric 00136OS3HJP56J-S, 1 Hp, 3600 Rpm, 56J FR, 575 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel Jet Pump.

00136OS3HJP56J-S, 1 Hp, 3600 Rpm, 56J FR, 575 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
