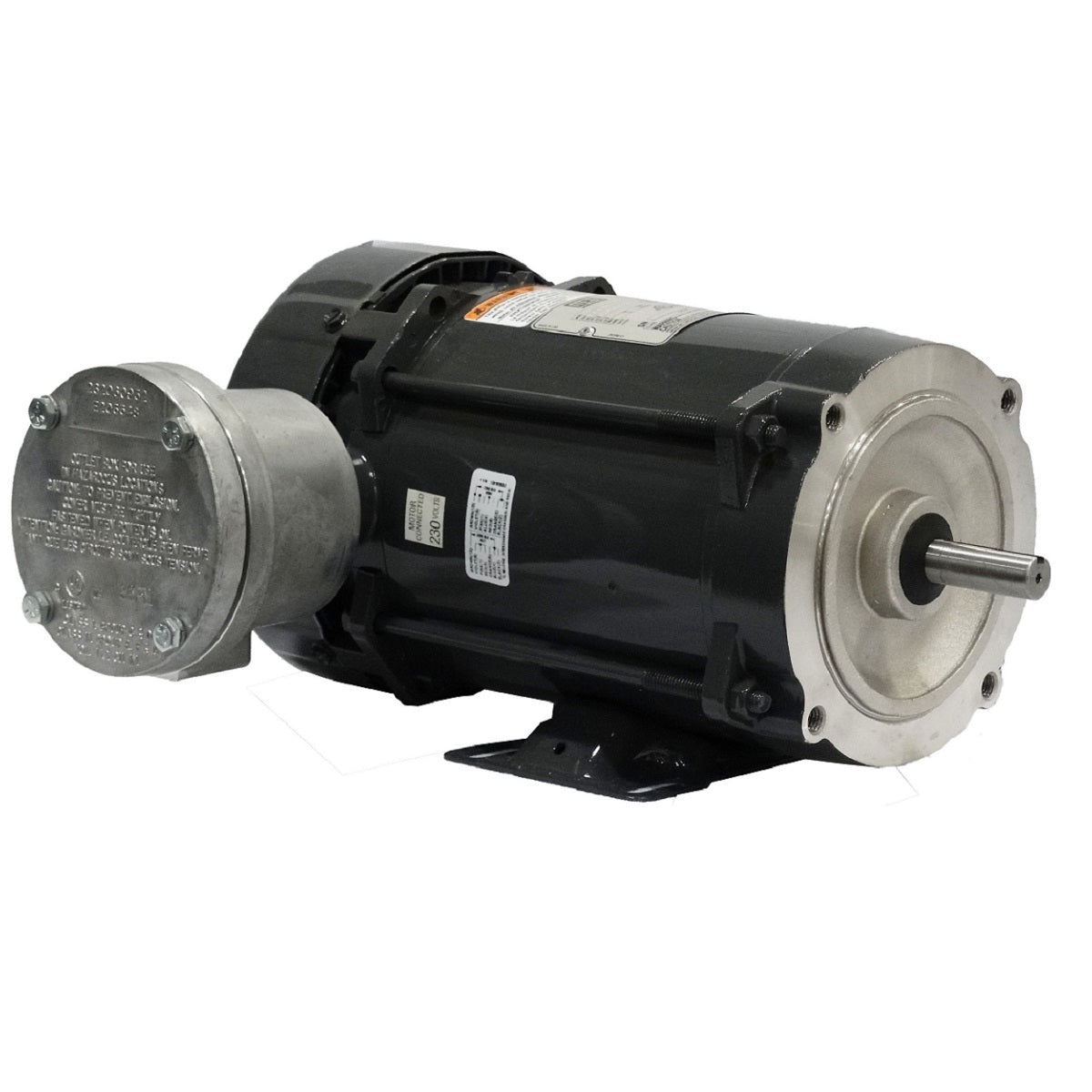

Weg Electric 00136XS1B56C, 1 Hp, 3600 Rpm, 56C FR, 115/280-230 Vac, TEFC, Foot-mounted, Flameproof Motor Standard Efficiency.

00136XS1B56C, 1 Hp, 3600 Rpm, 56C FR, 115/280-230 Vac, TEFC, Foot-mounted, Flameproof Motor Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Degree of Protection IP55
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1 HP
Enclosure TEFC
Number of poles 02P
Mounting Foot-mounted
Efficiency Standard Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 115/208-230 V
Synchronous speed 3600 rpm
