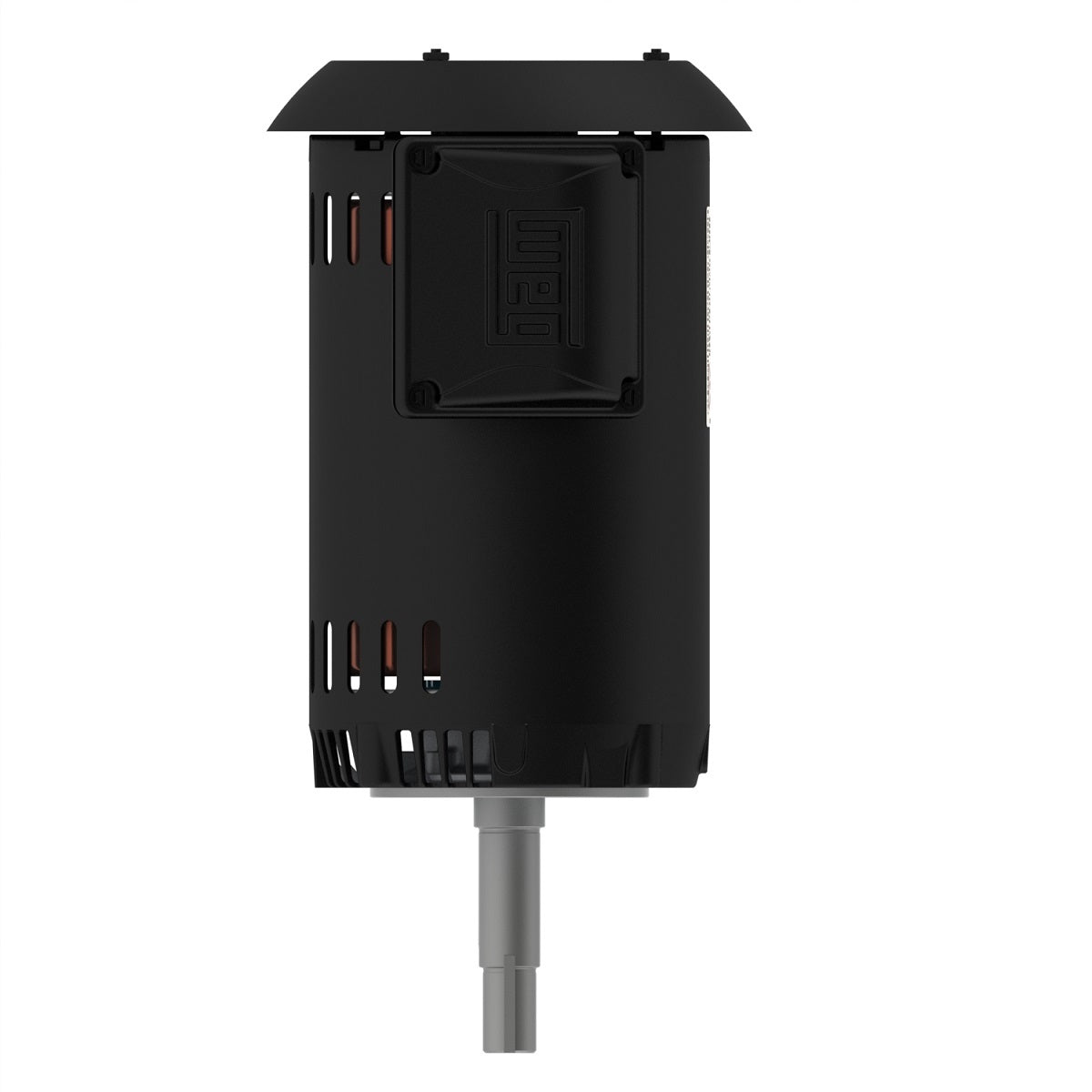

Weg Electric 00152ET3ER182TC-S, 1 1/2 Hp,1200 Rpm, 182/4TC FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency.

00152ET3ER182TC-S, 1 1/2 Hp,1200 Rpm, 182/4TC FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 182/4TC
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 4.44/2.22 A
L. R. Amperes 30.6/15.3 A
LRC 6.9x(Code K)
No load current 2.73/1.36 A
Rated torque 6.73 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 99s (cold) 55s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
