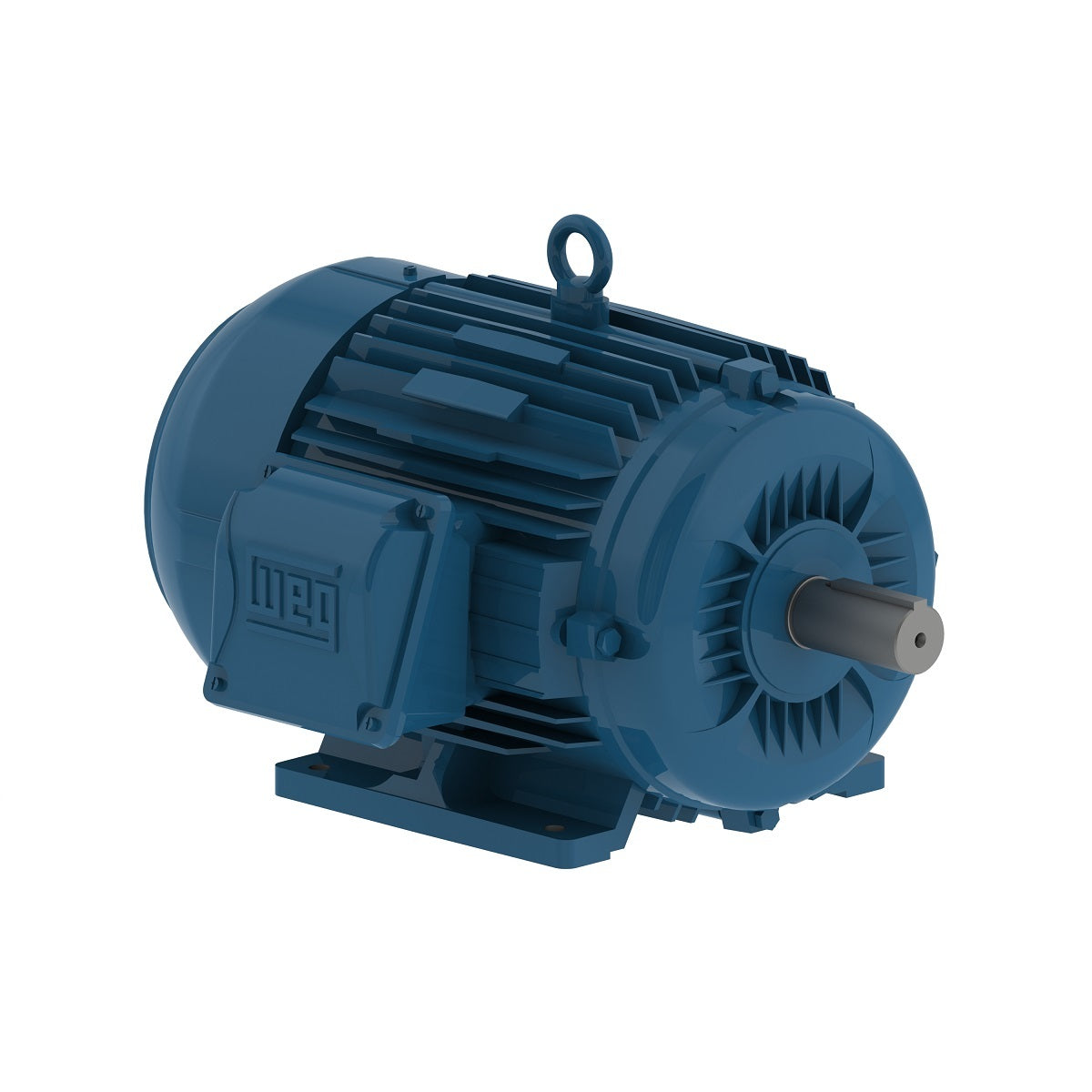

Weg Electric 00152ET3H182T-W22, 1 1/2 Hp,1200 Rpm, 182/4T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

00152ET3H182T-W22, 1 1/2 Hp,1200 Rpm, 182/4T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
