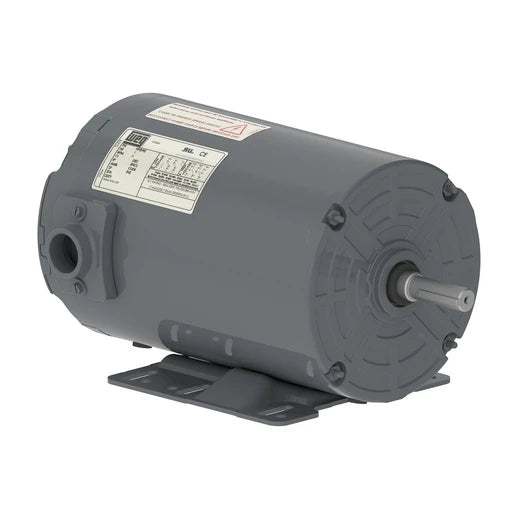

Weg Electric 00156AP3EAF143TZ-S, 1.5 HP, 143/5TZ FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 3600 RPM, TEAO, Foot-mounted, ROLLED STEEL High Efficiency, 15434153

Weg Electric 00156AP3EAF143TZ-S, 1.5 HP, 143/5TZ FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 3600 RPM, TEAO, Foot-mounted, ROLLED STEEL High Efficiency, 15434153

$443.22
$443.22
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00156AP3EAF143TZ-S, 1.5 HP, 143/5TZ FR, 3Ph, 208-230/460//190-220/380-415 V, 60 Hz, 3600 RPM, TEAO, Foot-mounted, ROLLED STEEL High Efficiency, 15434153

SPECIFICATIONS

Frame 143/5TZ
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2825 rpm
Slip 5.83 %
Rated voltage 190/380 V
Rated current 4.62/2.31 A
L. R. Amperes 27.7/13.9 A
LRC 6.0x(Code G)
No load current 1.60/0.800 A
Rated torque 2.79 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0356 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC418 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 30.9 lb
