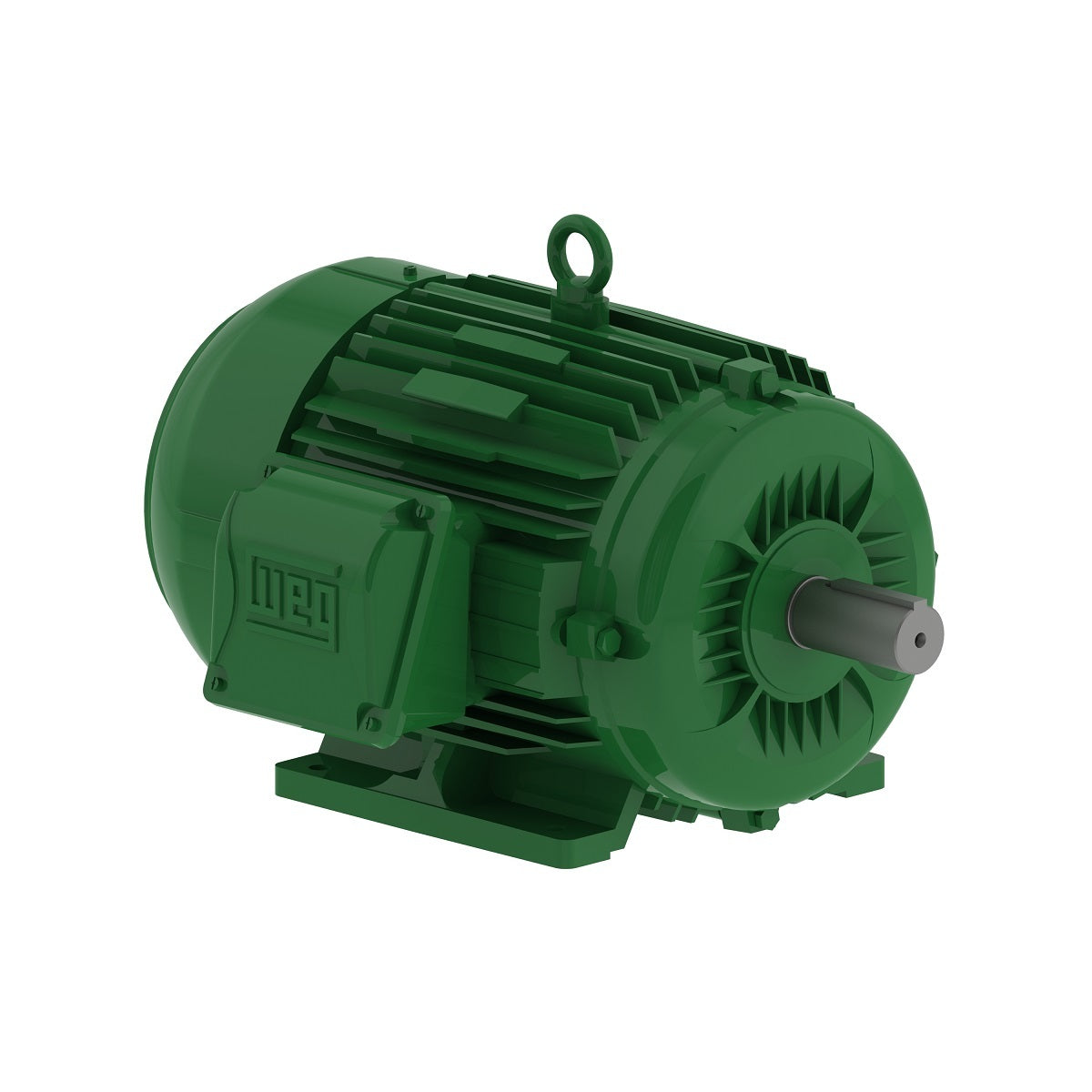

Weg Electric 00156EG3E143T-W22, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 208-230/460//380 Vac, TEAO, 1 PH, Foot-mounted, Super Premium Efficiency.

00156EG3E143T-W22, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 208-230/460//380 Vac, TEAO, 1 PH, Foot-mounted, Super Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
