Industrial Motors

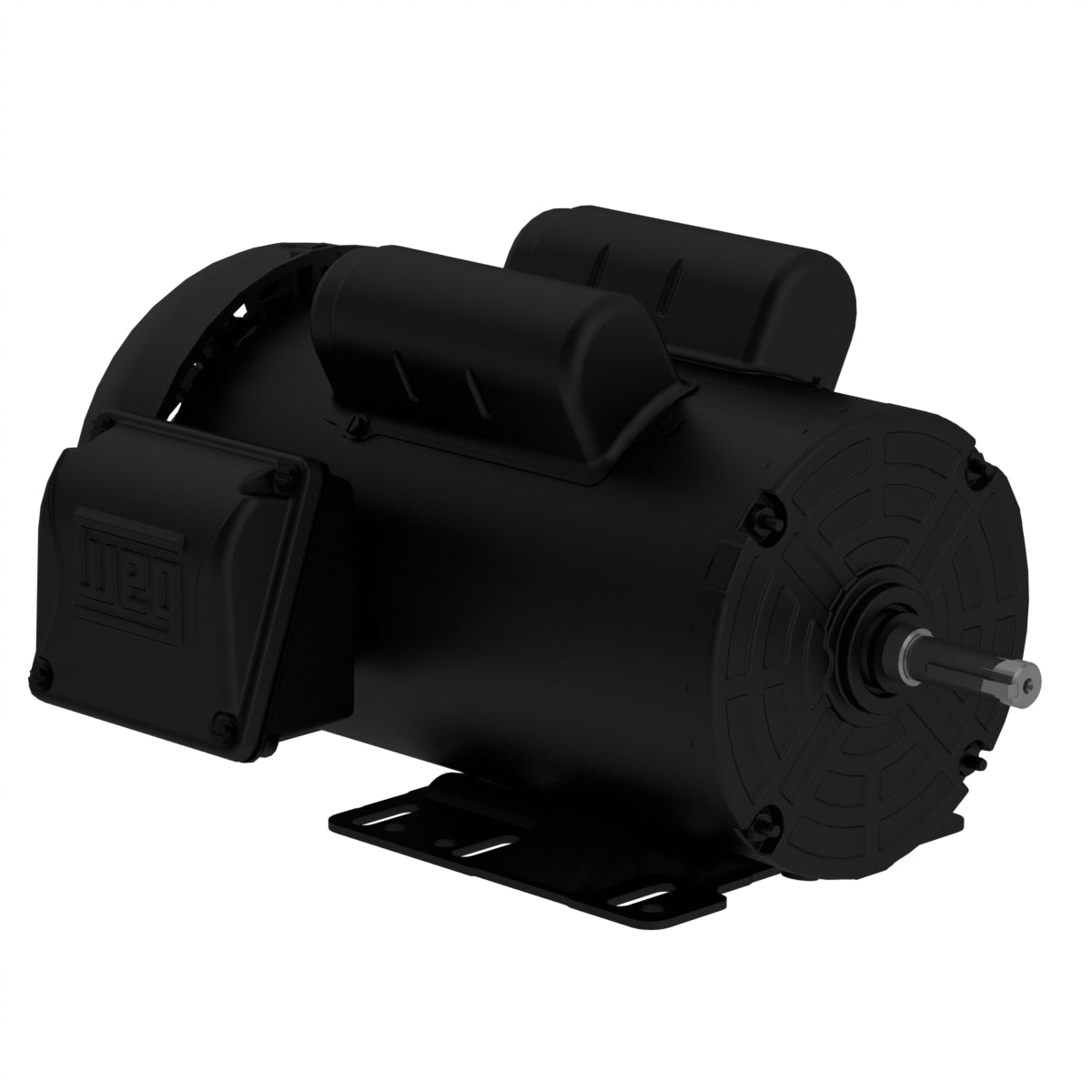

Weg Electric 00156ES1B143T-S, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Weg Electric 00156ES1B143T-S, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

$535.78
$535.78
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

00156ES1B143T-S, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
