Industrial Motors

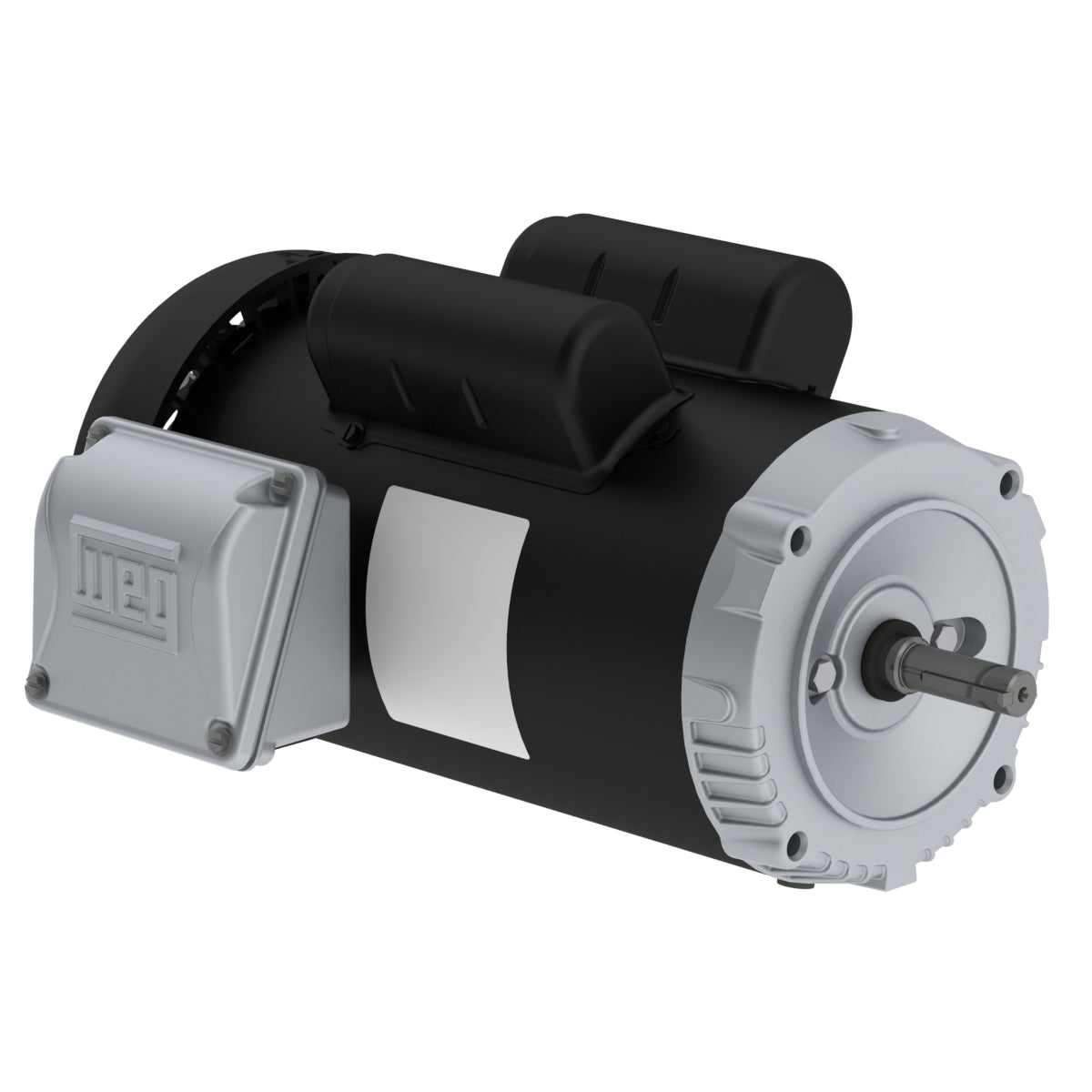

Weg Electric 00156ES1BJPR56J-S, 1 1/2 Hp, 3600 Rpm, 56J FR, 115/208-230 Vac, TEFC, 1 PH, Footless, Rolled Steel Jet Pump.

Weg Electric 00156ES1BJPR56J-S, 1 1/2 Hp, 3600 Rpm, 56J FR, 115/208-230 Vac, TEFC, 1 PH, Footless, Rolled Steel Jet Pump.

$438.00
$438.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

00156ES1BJPR56J-S, 1 1/2 Hp, 3600 Rpm, 56J FR, 115/208-230 Vac, TEFC, 1 PH, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

View full details
