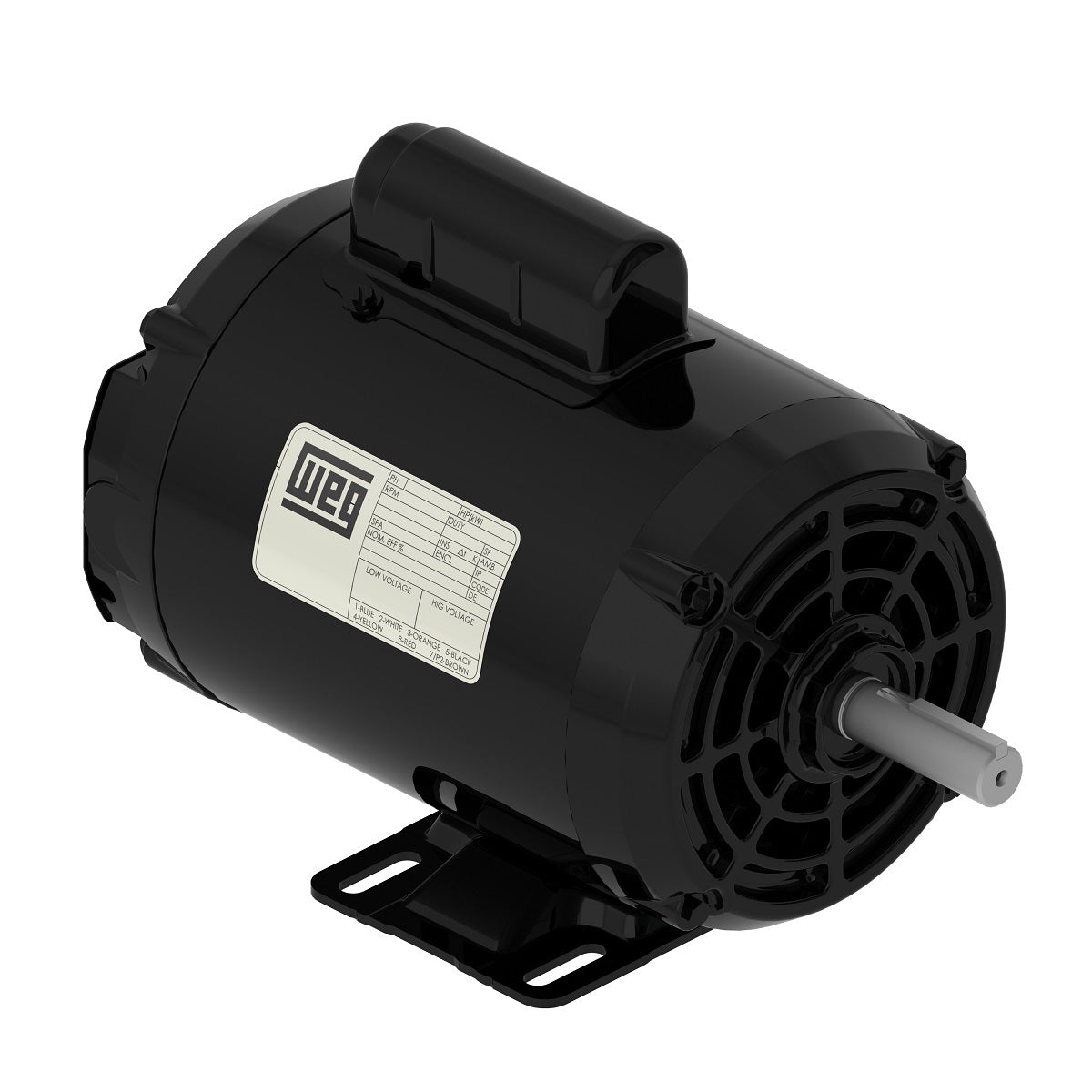

Weg Electric 00156ES1BOL56-S, 1 1/2 Hp, 56 Frame, 3600 RPM, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

00156ES1BOL56-S, 1 1/2 Hp, 56 Frame, 3600 RPM, 115/208-230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 13.2/7.30-6.60 A
L. R. Amperes 106/58.4-52.8 A
LRC 8.0x(Code K)
No load current 4.60/1.98-2.30 A
Rated torque 2.25 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
