Industrial Motors

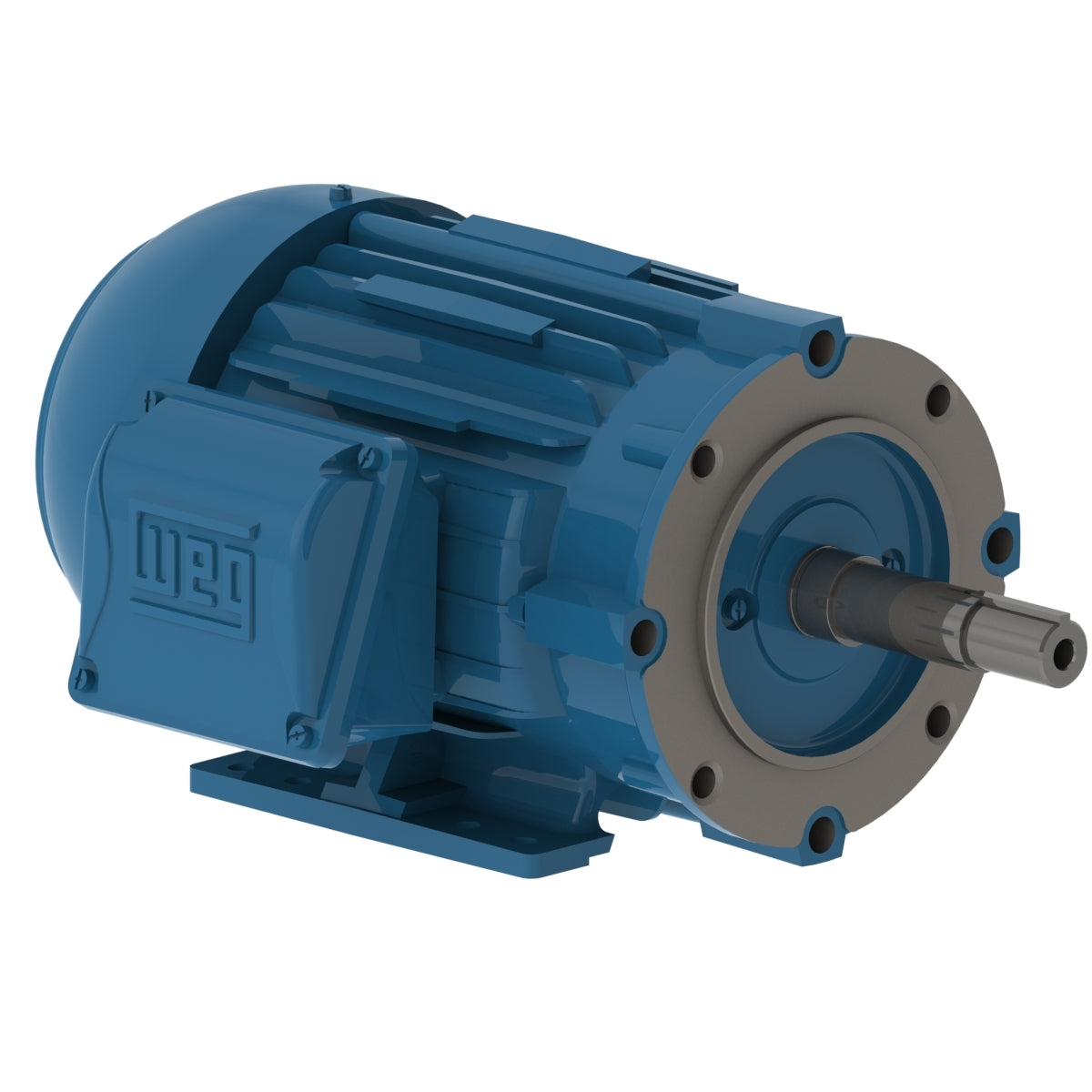

Weg Electric 00156ET3E143JM-W22, 1 1/2 Hp, 3600 Rpm, 143/5JM FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Weg Electric 00156ET3E143JM-W22, 1 1/2 Hp, 3600 Rpm, 143/5JM FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

$631.90
$631.90
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

00156ET3E143JM-W22, 1 1/2 Hp, 3600 Rpm, 143/5JM FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
