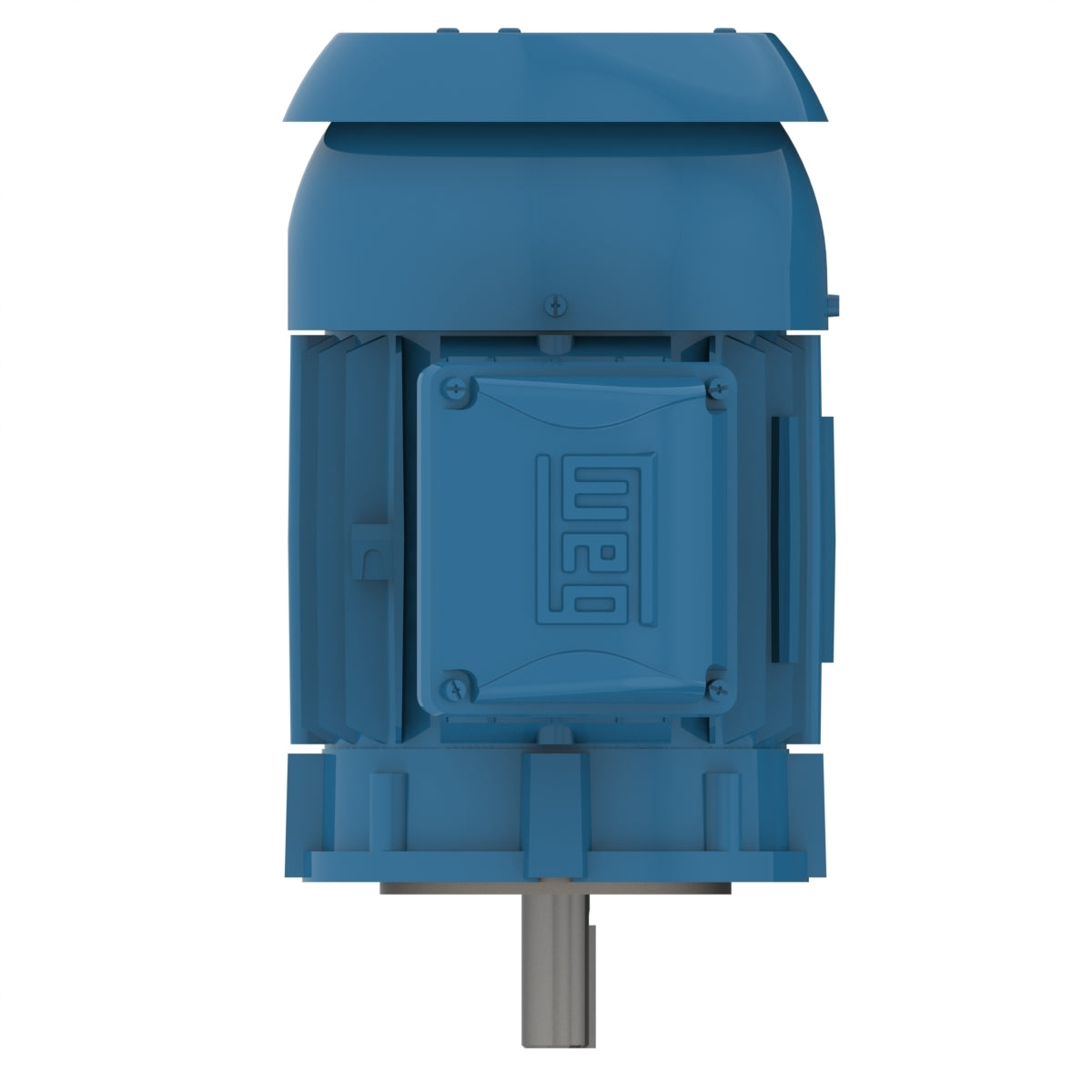

Weg Electric 00156ET3ER143TC-W22, 1 1/2 Hp, 3600 Rpm, 145YZ FR, 230/460//380 Vac, TEFC, 3 PH, Footless, Premium Efficiency.

00156ET3ER143TC-W22, 1 1/2 Hp, 3600 Rpm, 143TC FR, 230/460//380 Vac, TEFC, 3 PH, Footless, Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC
