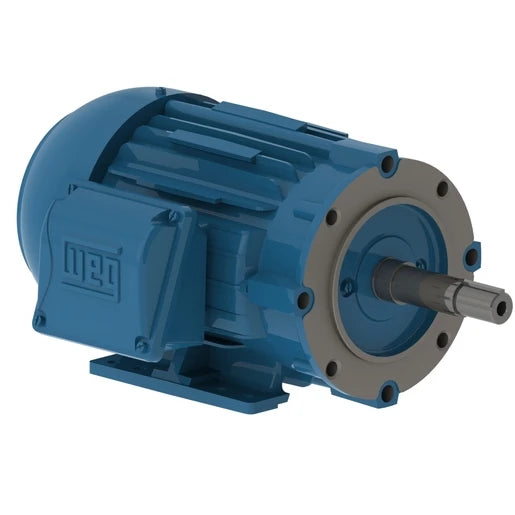

Weg Electric 00156ET3H143JM-W22, 1.5 Hp, 3600 Rpm, 143/5JM FR, 575 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor, 14030623

Weg Electric 00156ET3H143JM-W22, 1.5 Hp, 3600 Rpm, 143/5JM FR, 575 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor, 14030623

$631.90
$631.90
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00156ET3H143JM-W22, 1.5 Hp, 3600 Rpm, 143/5JM FR, 575 Vac, 3 PH, TEFC, Foot-mounted, General Purpose Motor, 14030623

SPECIFICATIONS

Frame 143/5JM
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 575 V
Rated current 1.64 A
L. R. Amperes 14.6 A
LRC 8.9x(Code L)
No load current 0.880 A
Rated torque 2.24 ft.lb
Locked rotor torque 270 %
Breakdown torque 370 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0470 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 40.8 lb
