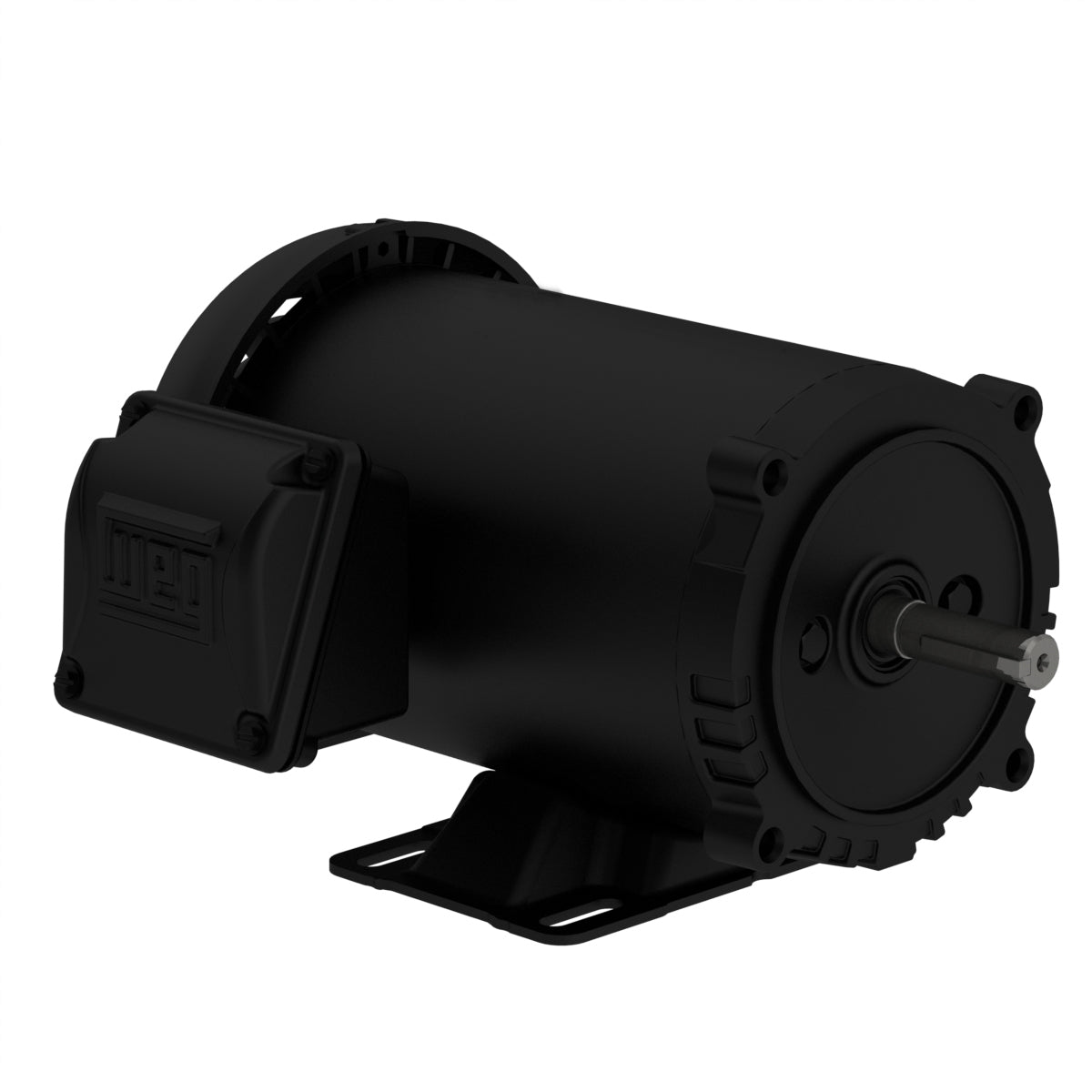

Weg Electric 00156ET3H56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, Foot-mounted, Premium Efficiency.

00156ET3H56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, TEFC, Foot-mounted, Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
