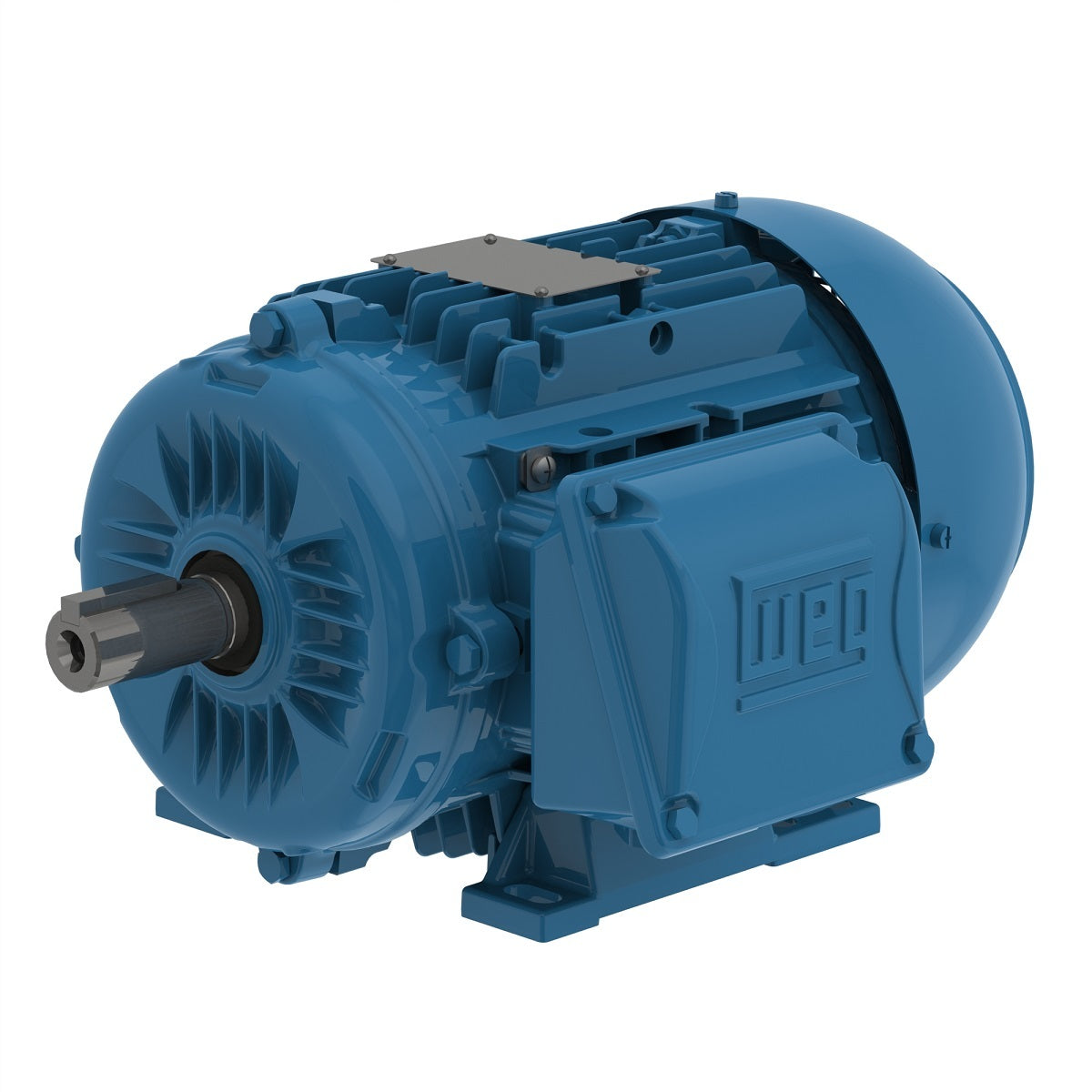

Weg Electric 00156ET3WAL90S-W22, 2 Hp, 3600 Rpm, 90S/L FR, 460//220-240/380-415 Vac, 3 PH, TEFC, Foot-mounted, Multimounting IE3.

00156ET3WAL90S-W22, 2 Hp, 3600 Rpm, 90S/L FR, 460//220-240/380-415 Vac, 3 PH, TEFC, Foot-mounted, Multimounting IE3.

Engineering Data

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//220-240/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 2 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC
