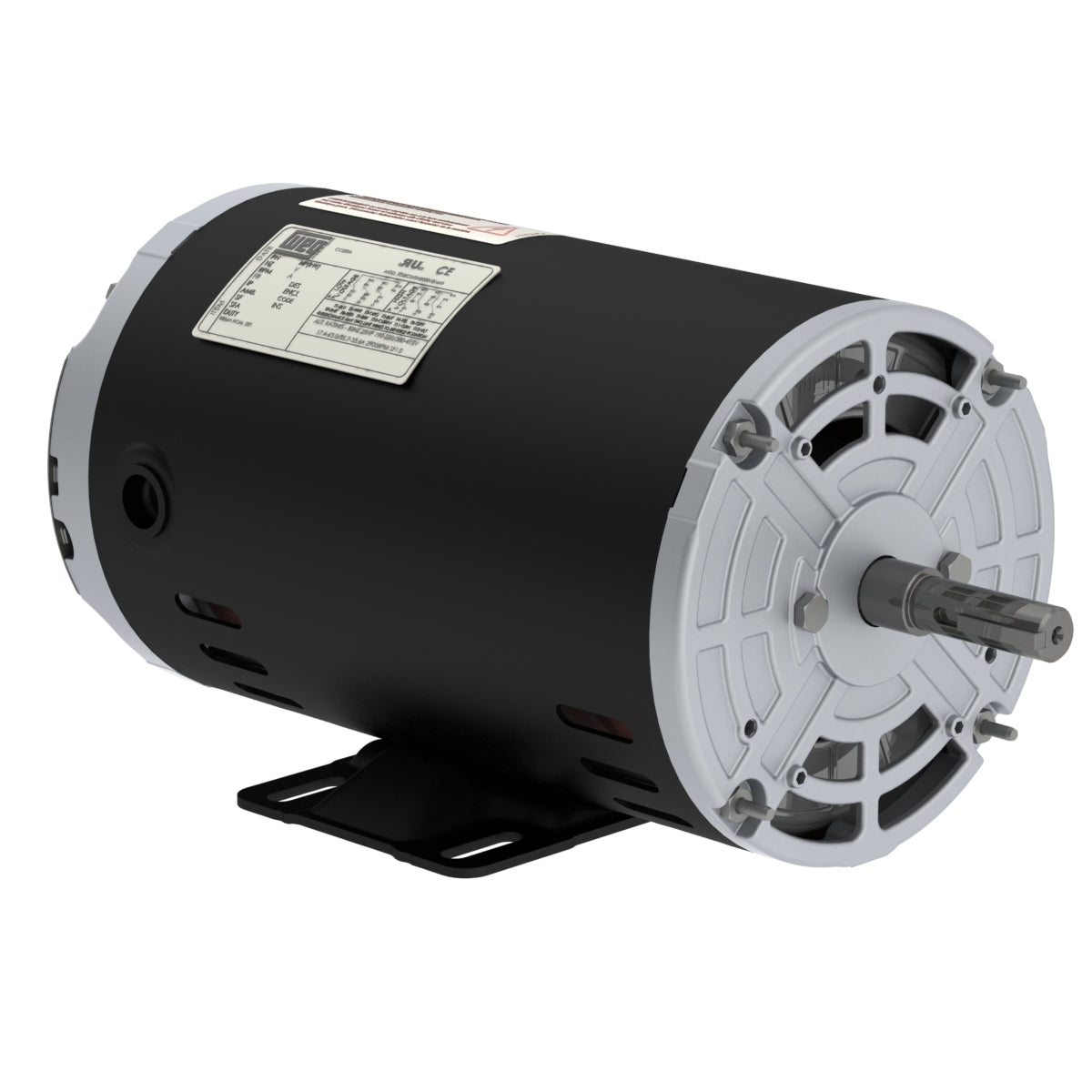

Weg Electric 00156OS1BCD56-S, 1 1/2 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, ODP, Foot-mounted, Rolled Steel Compressor Duty.

00156OS1BCD56-S, 1 1/2 Hp, 3600 Rpm, 56 FR, 115/208-230 Vac, 1 PH, ODP, Foot-mounted, Rolled Steel Compressor Duty.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
