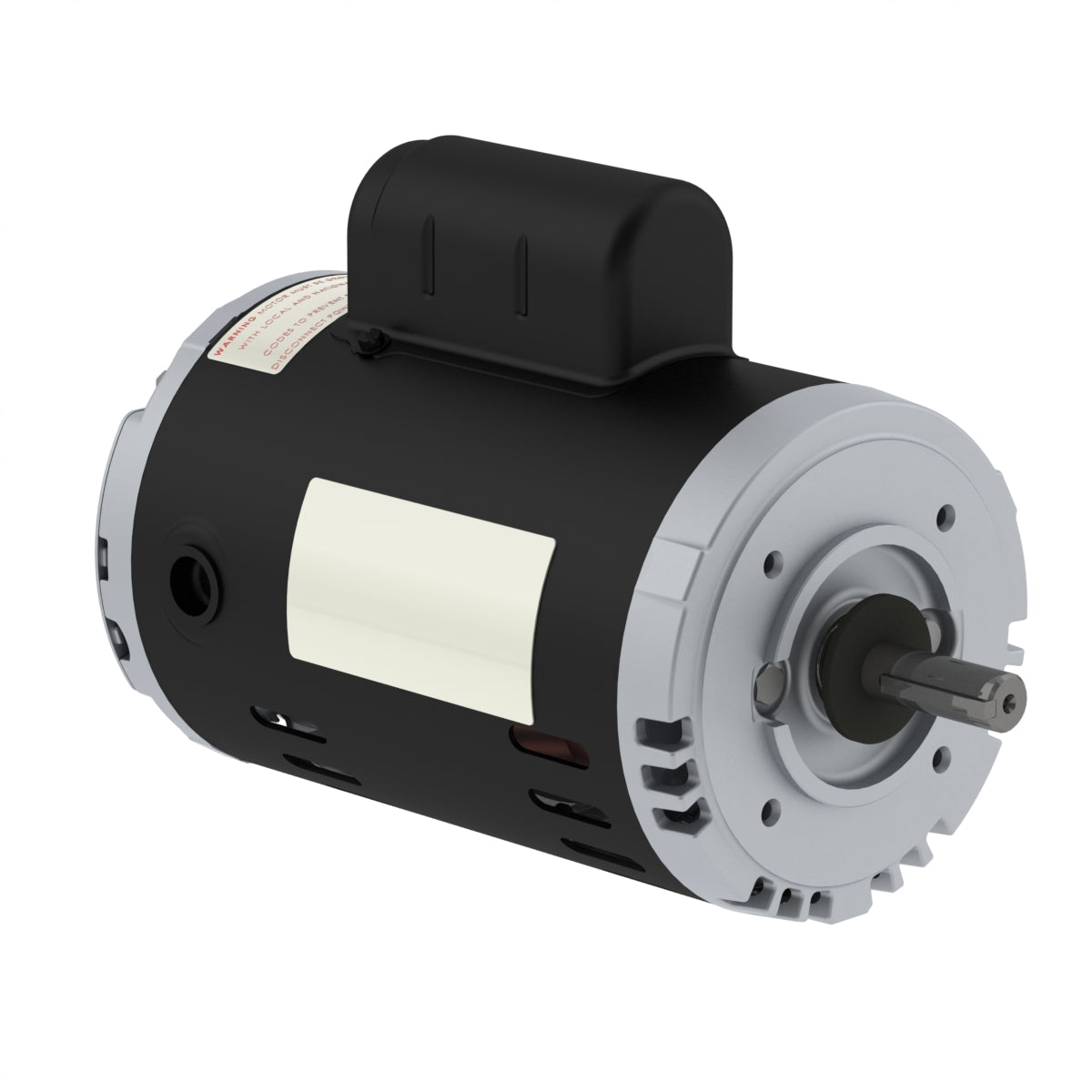

Weg Electric 00156OS1BJPR56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel Jet Pump.

00156OS1BJPR56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel Jet Pump.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several application

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
