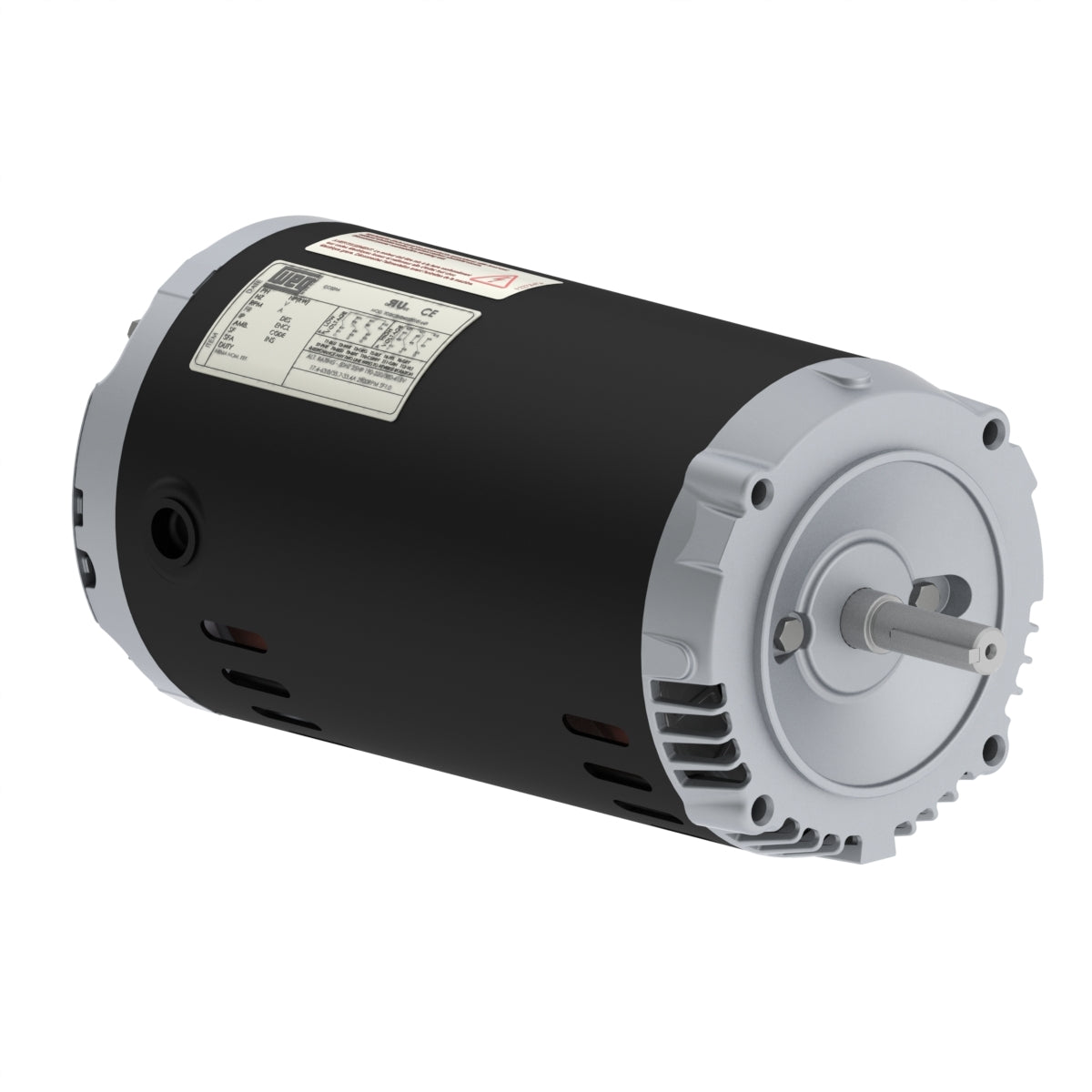

Weg Electric 00156OS3EJPR56J-S 1 1/2 Hp, 3600 Rpm, 56J FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump, 12676610

Weg Electric 00156OS3EJPR56J-S 1 1/2 Hp, 3600 Rpm, 56J FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump, 12676610

$271.45
$271.45
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00156OS3EJPR56J-S 1 1/2 Hp, 3600 Rpm, 56J FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump, 12676610

SPECIFICATIONS

Frame 56J
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3460 rpm
Slip 3.89 %
Rated voltage 230/460 V
Rated current 4.22/2.11 A
L. R. Amperes 28.7/14.3 A
LRC 6.8x(Code J)
No load current 2.20/1.10 A
Rated torque 2.28 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0648 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.30 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 62.0 dB(A)
Approx. weight³ 25.8 lb
