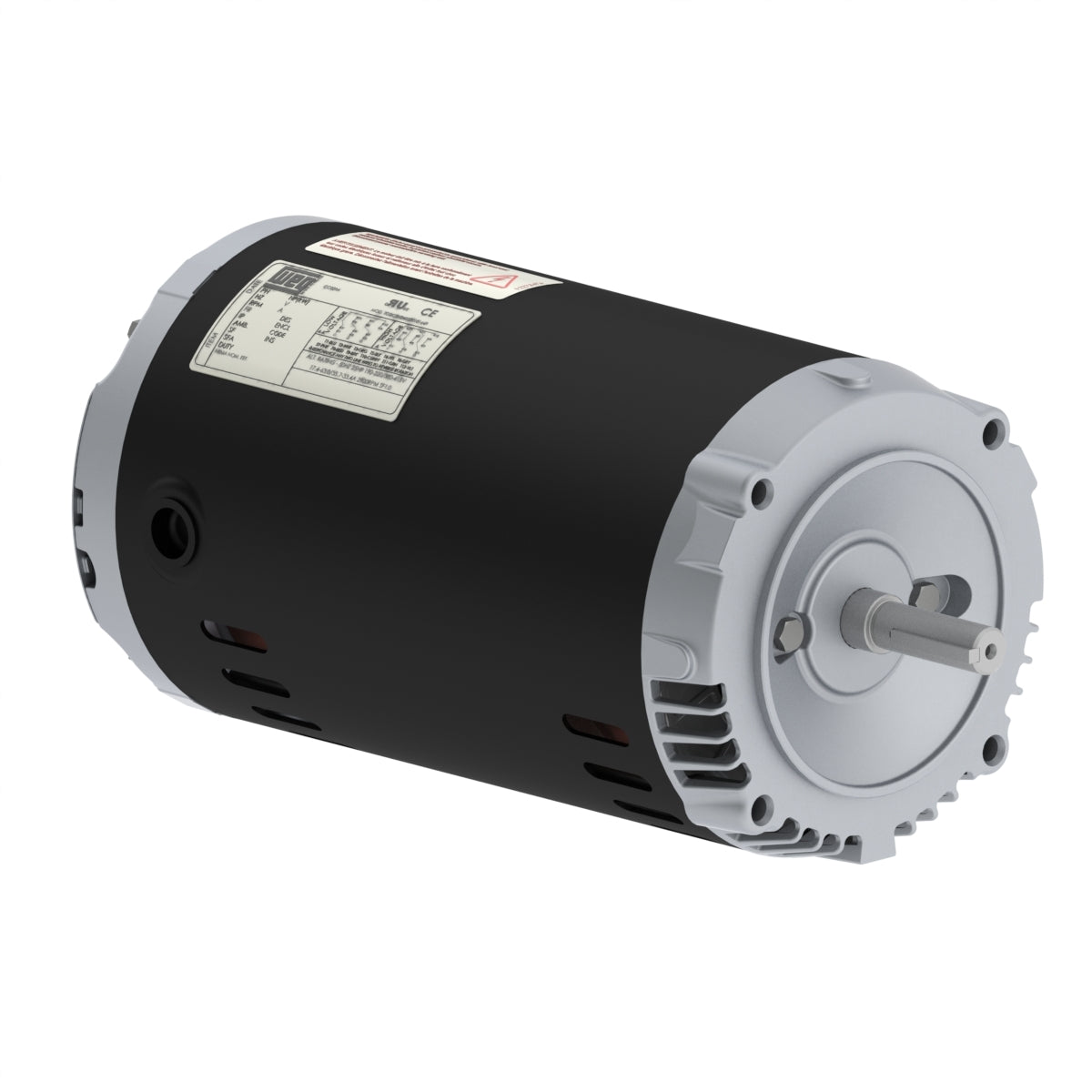

Weg Electric 00156OS3HJPR56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump.

00156OS3HJPR56C-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 575 Vac, 3 PH, ODP, Footless, Rolled Steel Jet Pump.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
