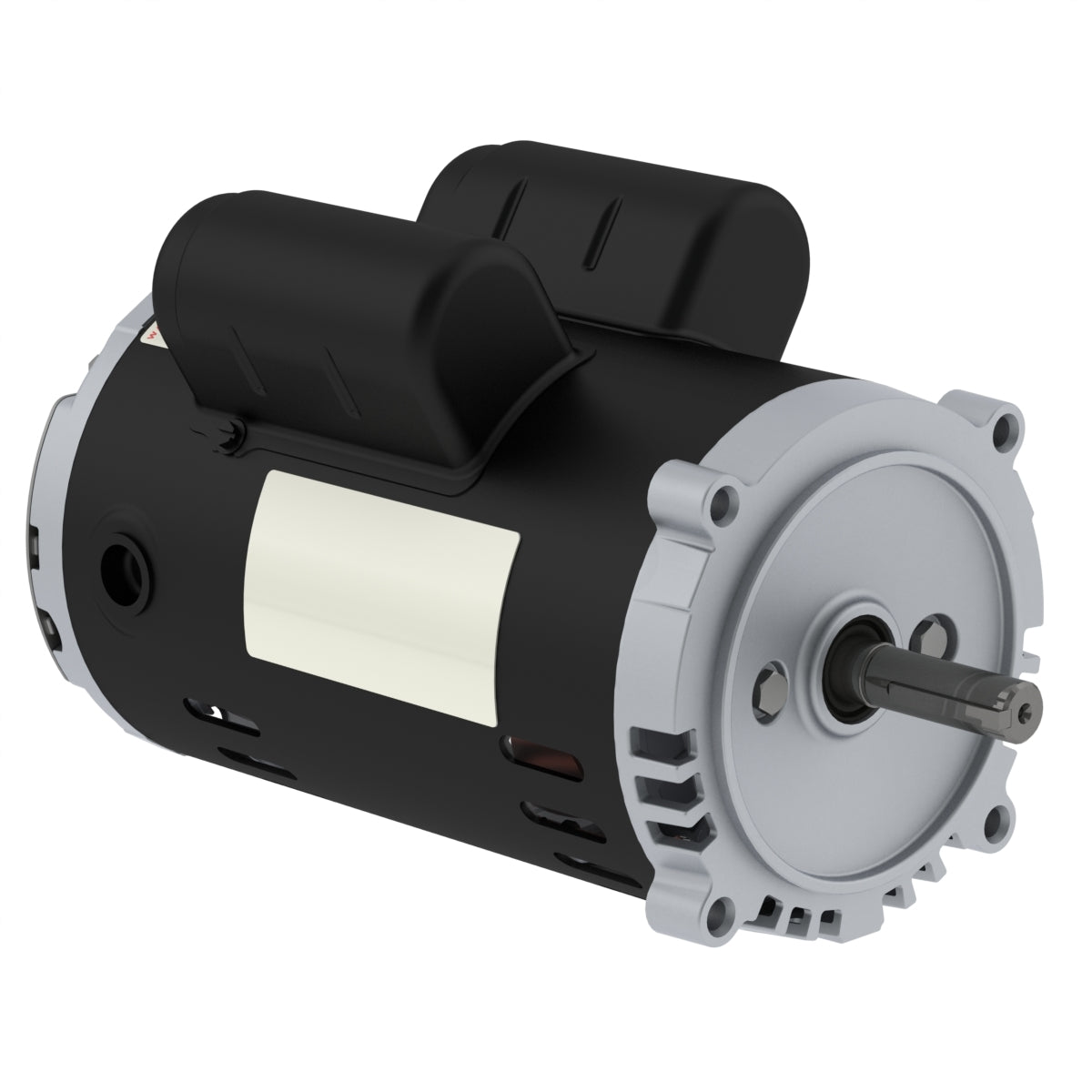

Weg Electric 00156OT1B56CFL-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel.

00156OT1B56CFL-S, 1 1/2 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, ODP, Footless, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
