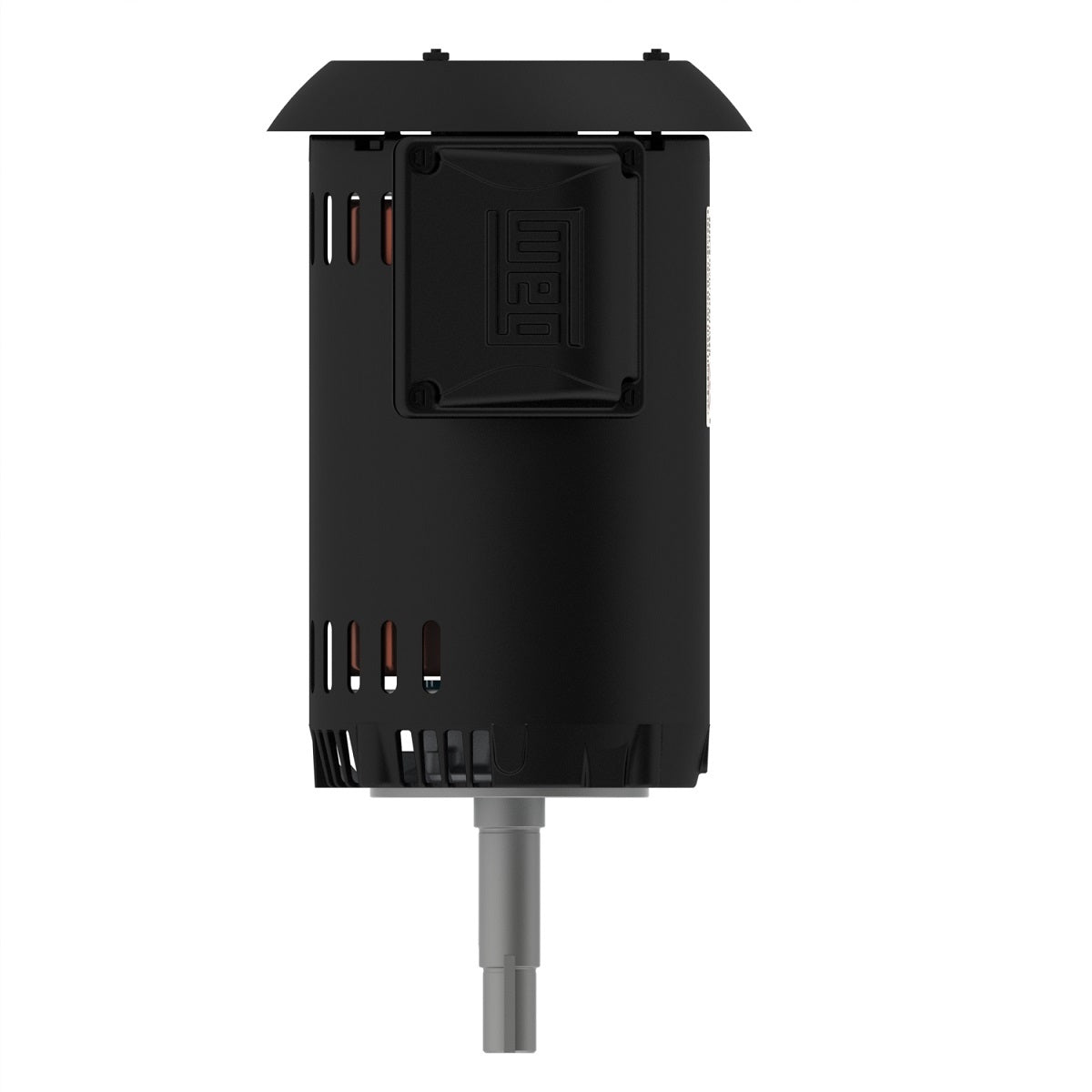

Weg Electric 00156OT3E143JPV-S, 1 1/2 Hp, 3600 Rpm, 143/5JP FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

00156OT3E143JPV-S, 1 1/2 Hp, 3600 Rpm, 143/5JP FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP
