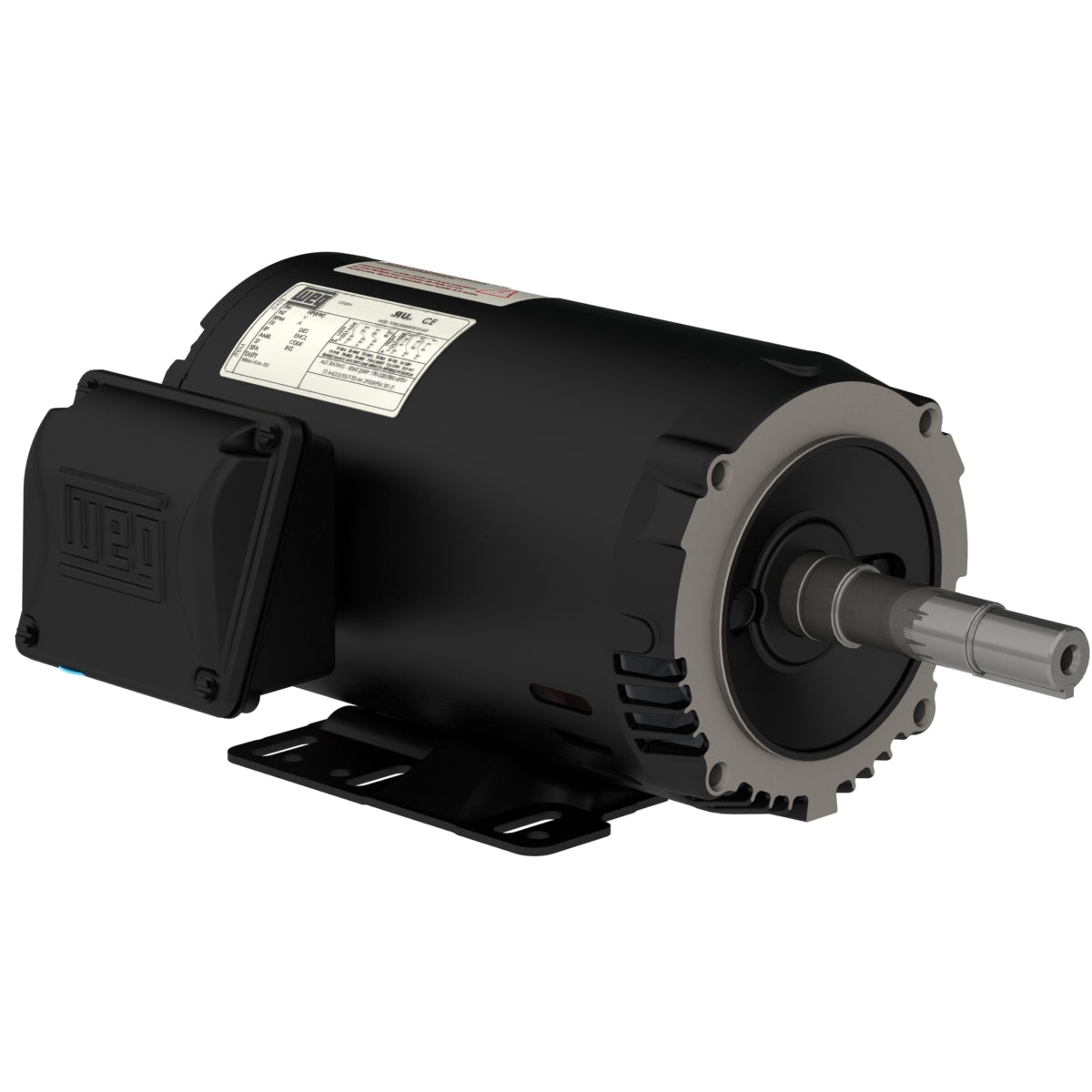

Weg Electric 00156OT3V143JM-S, 1 1/2 Hp, 3600 Rpm, 143/5JM FR, 200/400 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

00156OT3V143JM-S, 1 1/2 Hp, 3600 Rpm, 143/5JM FR, 200/400 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
