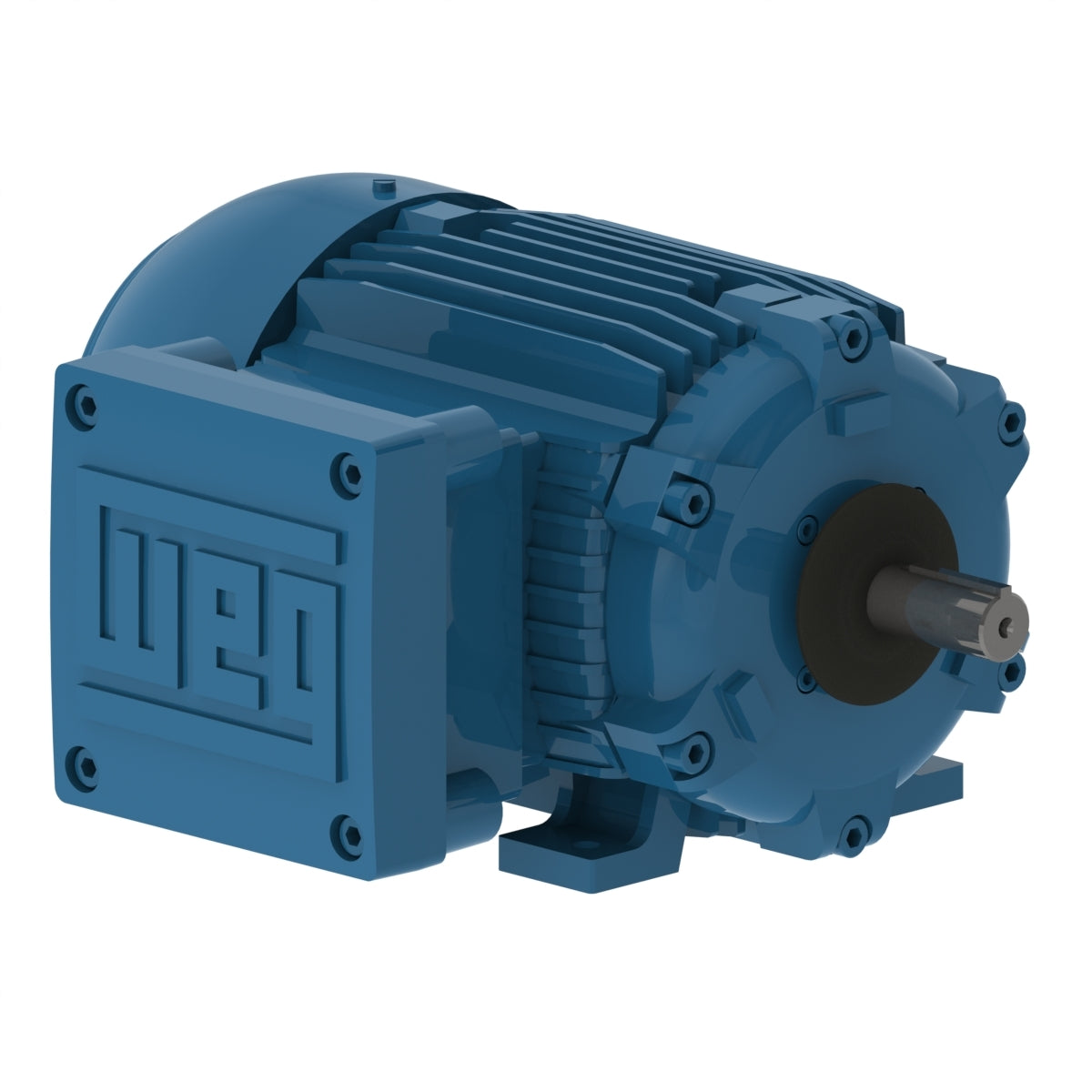

Weg Electric 00156XT3H143T, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 575 Vac, TEFC, Foot-mounted, Explosion-proof Motor NEMA Premium Efficiency.

00156XT3H143T, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 575 Vac, TEFC, Foot-mounted, Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
