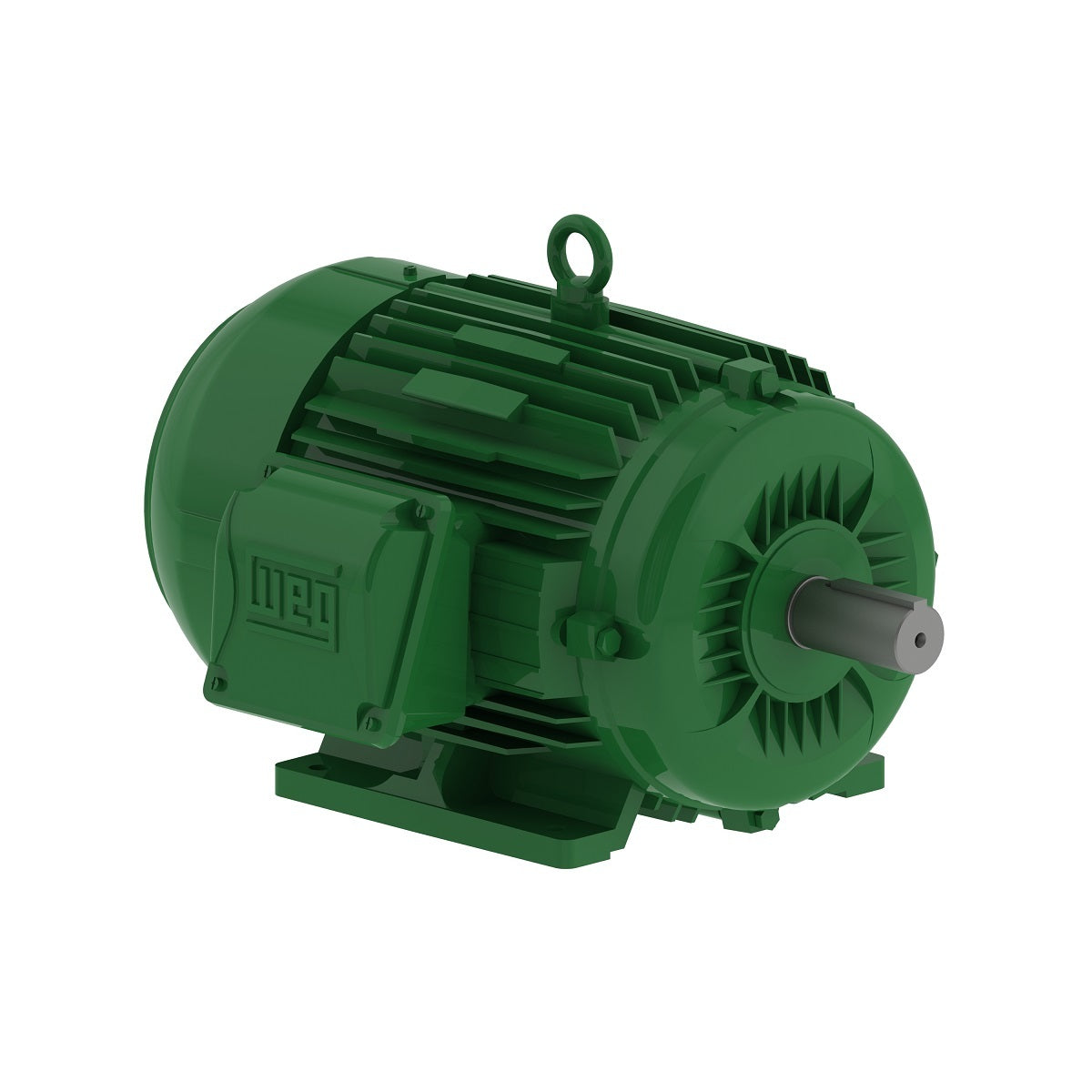

Weg Electric 00158EG3EL145T-W22, 1 1/2 Hp, 1800 Rpm, L143/5T FR, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Super Premium Efficiency

00158EG3EL145T-W22, 1 1/2 Hp, 1800 Rpm, L143/5T FR, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, Super Premium Efficiency

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
