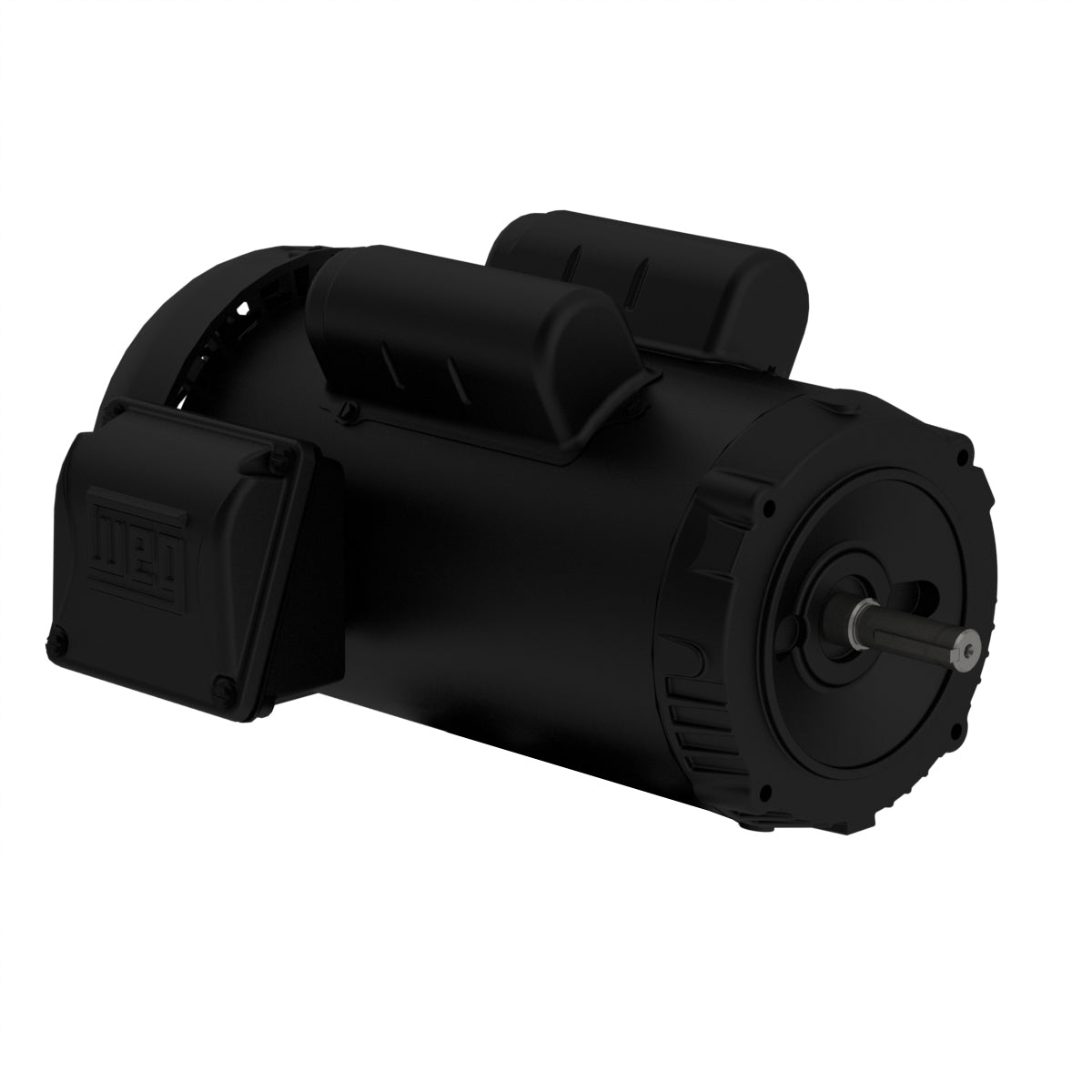

Weg Electric 00158ES1B56CFL-S, 1 1/2 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Footless, Rolled Steel.

00158ES1B56CFL-S, 1 1/2 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, TEFC, 1 PH, Footless, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
