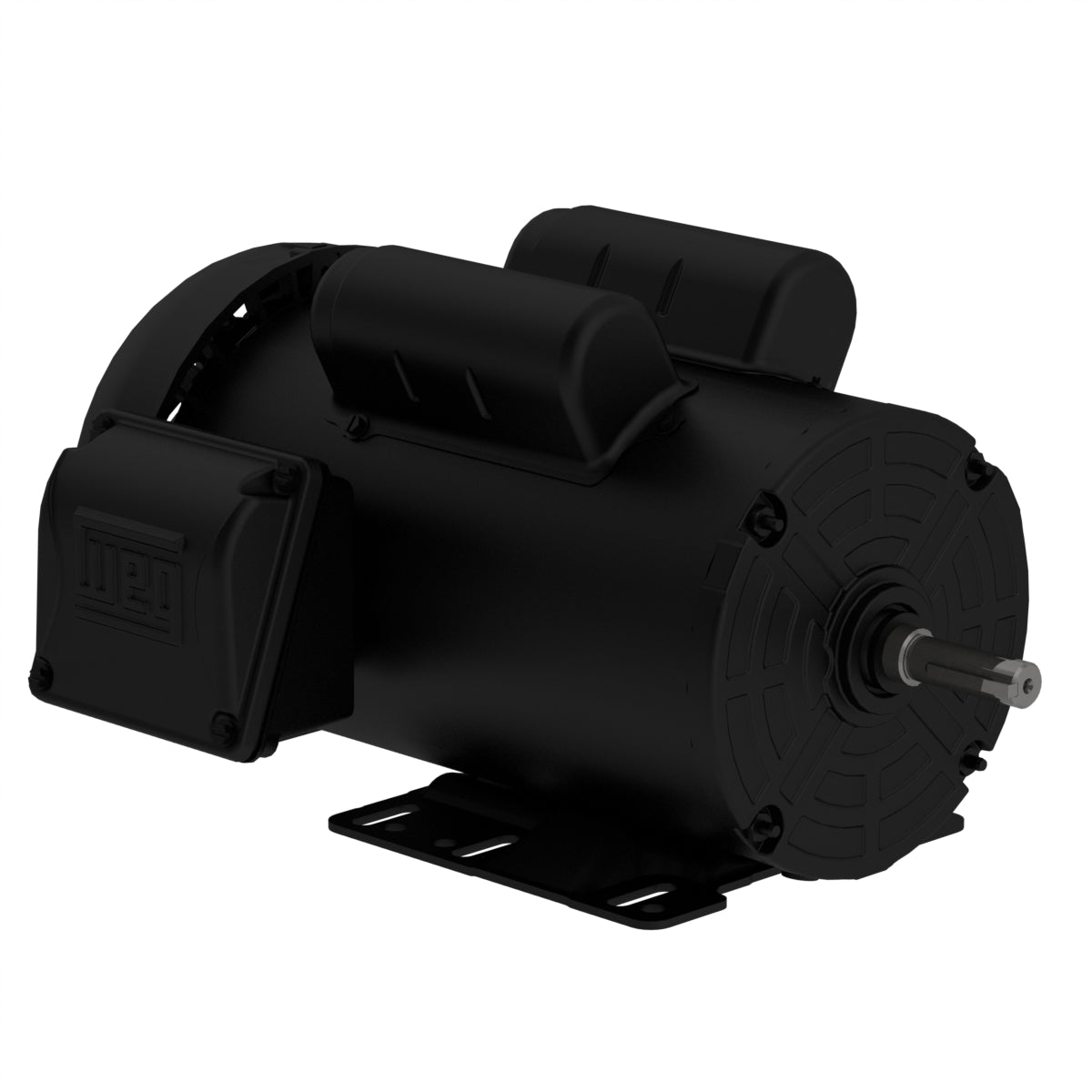

Weg Electric 00158ES1RFD145T-S, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 115/230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

00158ES1RFD145T-S, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 115/230 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
