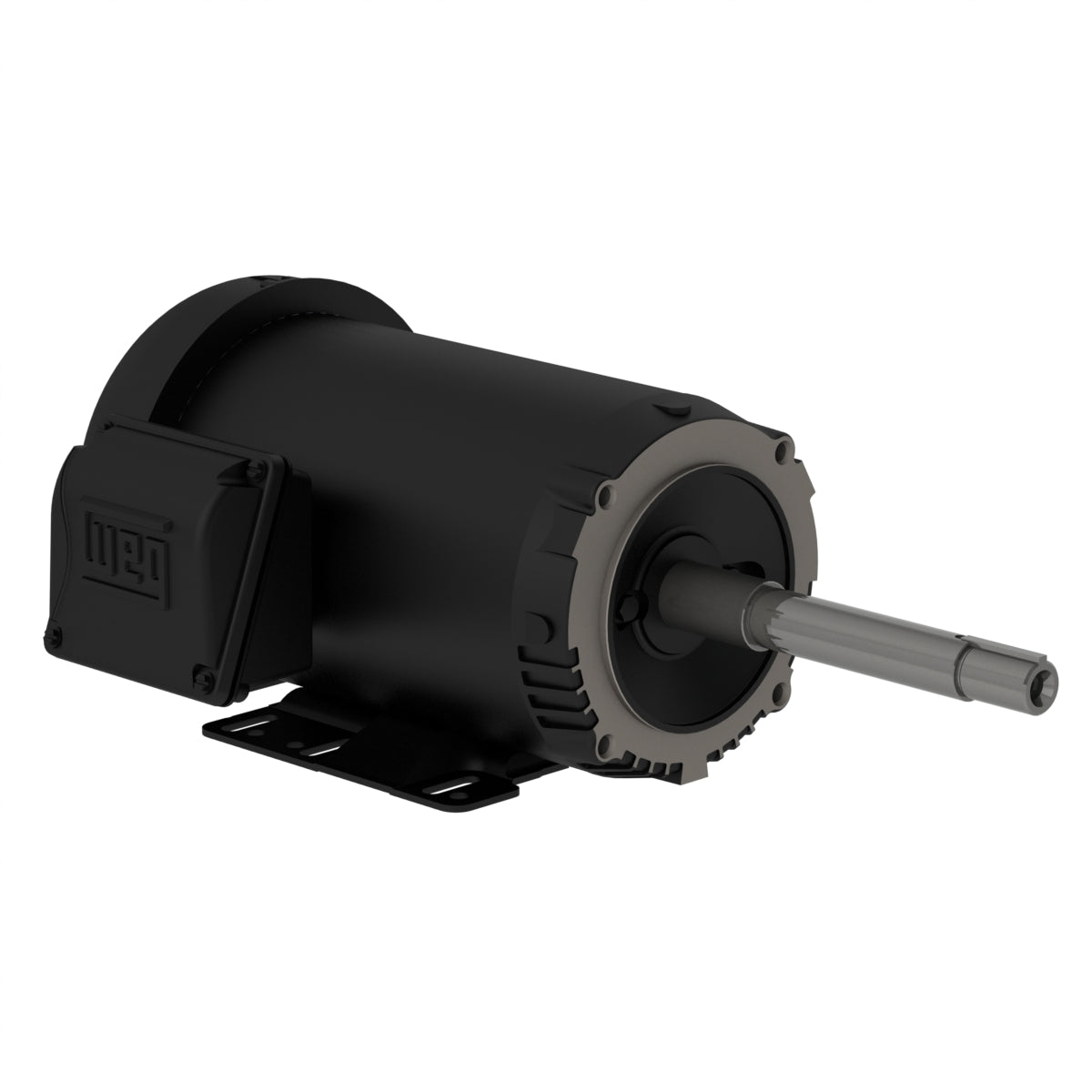

Weg Electric 00158ET3E145JP-S, 1 1/2 Hp, 1800 Rpm, 145JP FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Close Coupled Pump.

00158ET3E145JP-S, 1 1/2 Hp, 1800 Rpm, 145JP FR, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Close Coupled Pump.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They ensure maximum performance and robustness in a great variety of applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
