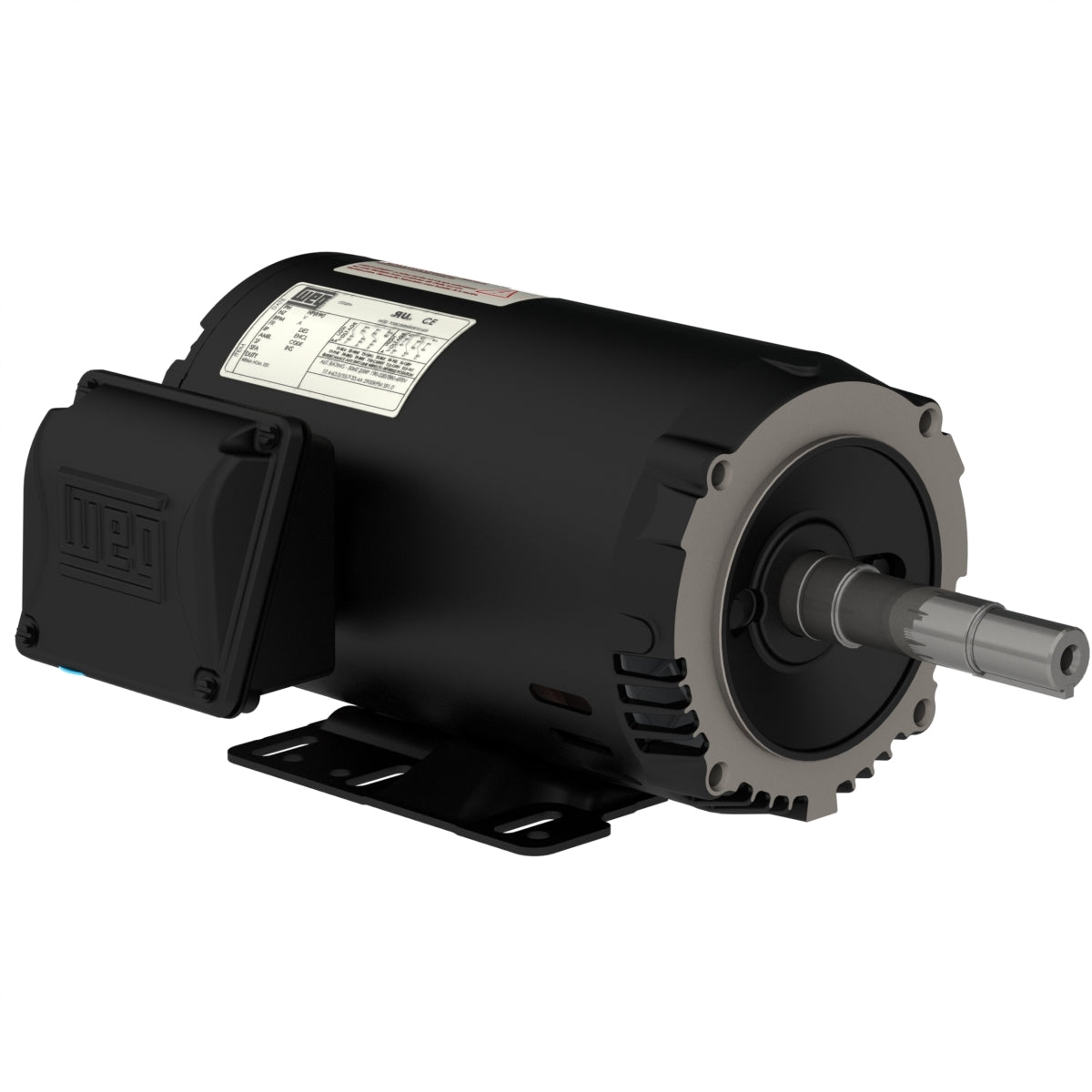

Weg Electric 00158ET3ESB145TCZ1-S, 1 1/2 Hp, 1800 Rpm, 143/5TCZ FR, 230/460//380 Vac, TEFC, 3 PH, Footless, Rolled Steel.

00158ET3ESB145TCZ1-S, 1 1/2 Hp, 1800 Rpm, 143/5TCZ FR, 208-230/460//190-220/380-415 Vac, TEFC, 3 PH, Footless, Rolled Steel.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
