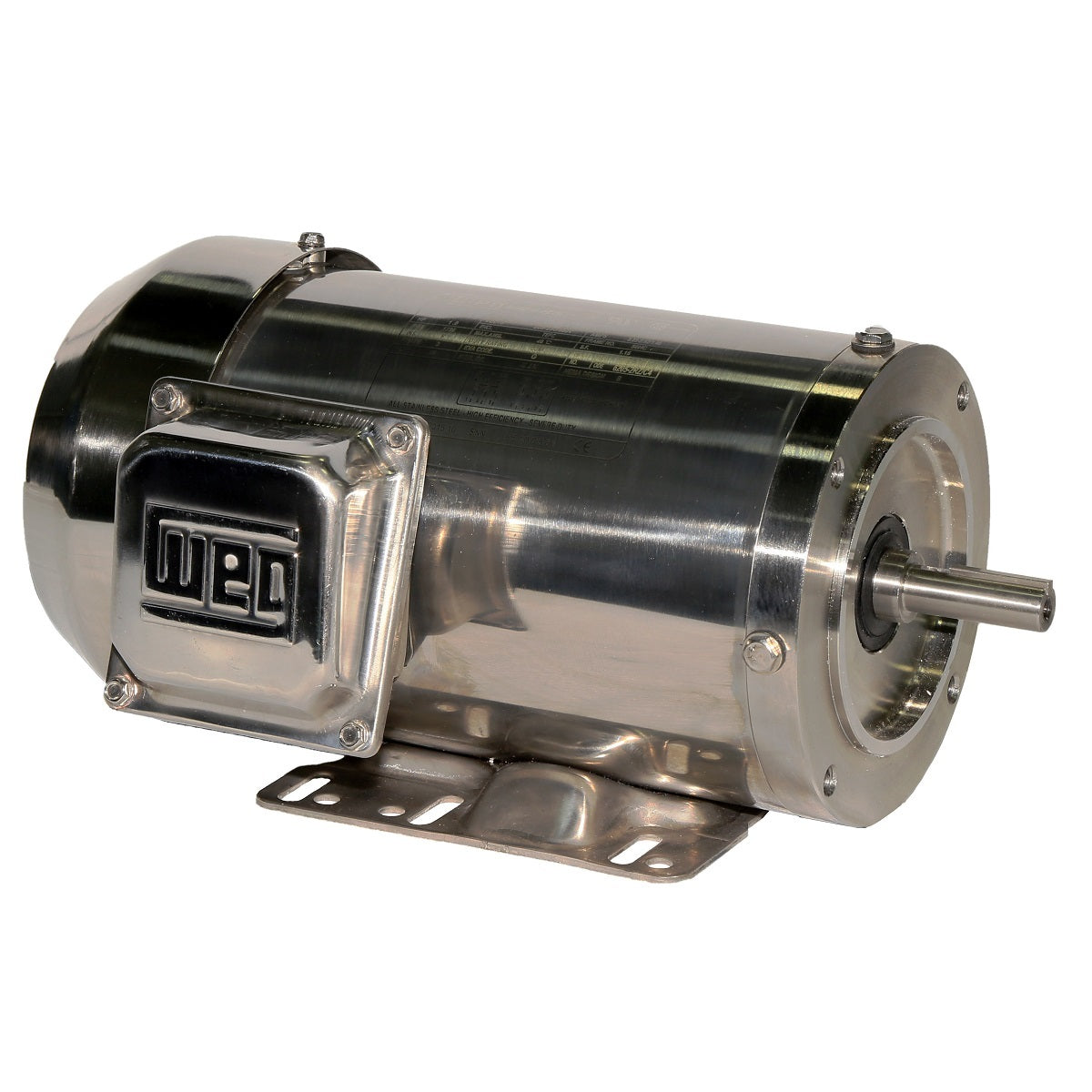

Weg Electric 00158ET3ESS145TC, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Shark NEMA Premium Efficiency.

00158ET3ESS145TC, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Shark NEMA Premium Efficiency.

Engineering Data

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product features

Standard NEMA MG-1
Degree of Protection IP56
Mounting F-1
Flange C
Frequency 60 Hz
Output rating 1.5 HP
Enclosure TEFC
Number of poles 4
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 145TC
Voltage 230/460 V
Synchronous speed 1800 rpm
