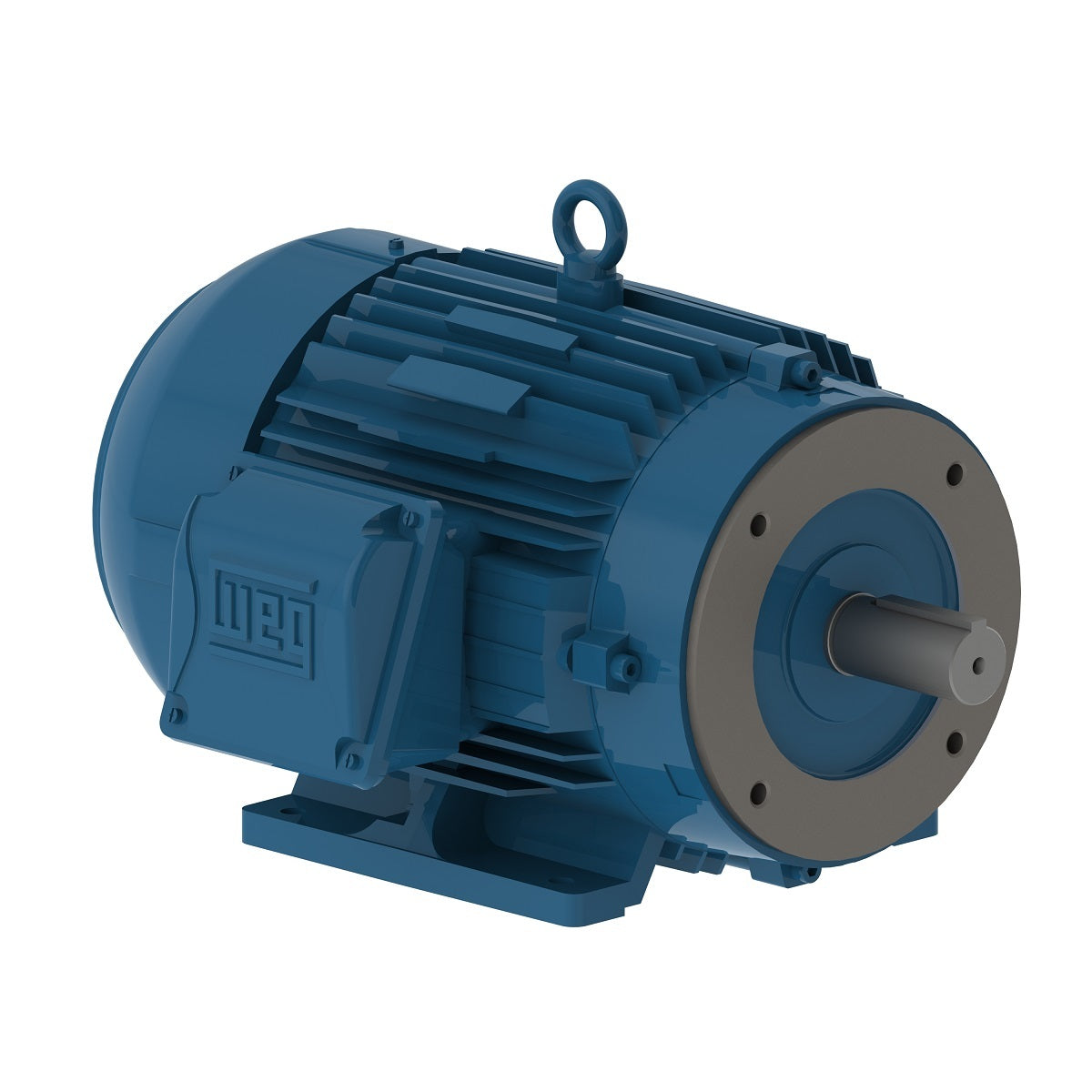

Weg Electric 00158ET3H145T-W22, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

00158ET3H145T-W22, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
