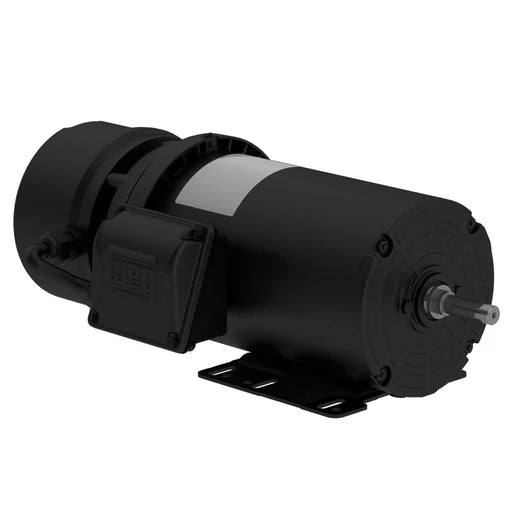

Weg Electric 00158ET3HBM145T-S, 1.5 HP, 143/5T FR, 3Ph, 575 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 15448418

Weg Electric 00158ET3HBM145T-S, 1.5 HP, 143/5T FR, 3Ph, 575 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 15448418

$1,727.49
$1,727.49
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00158ET3HBM145T-S, 1.5 HP, 143/5T FR, 3Ph, 575 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL, 15448418

SPECIFICATIONS

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 575 V
Rated current 1.62 A
L. R. Amperes 13.3 A
LRC 8.2x(Code K)
No load current 0.867 A
Rated torque 4.50 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1101 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 50.5 lb
