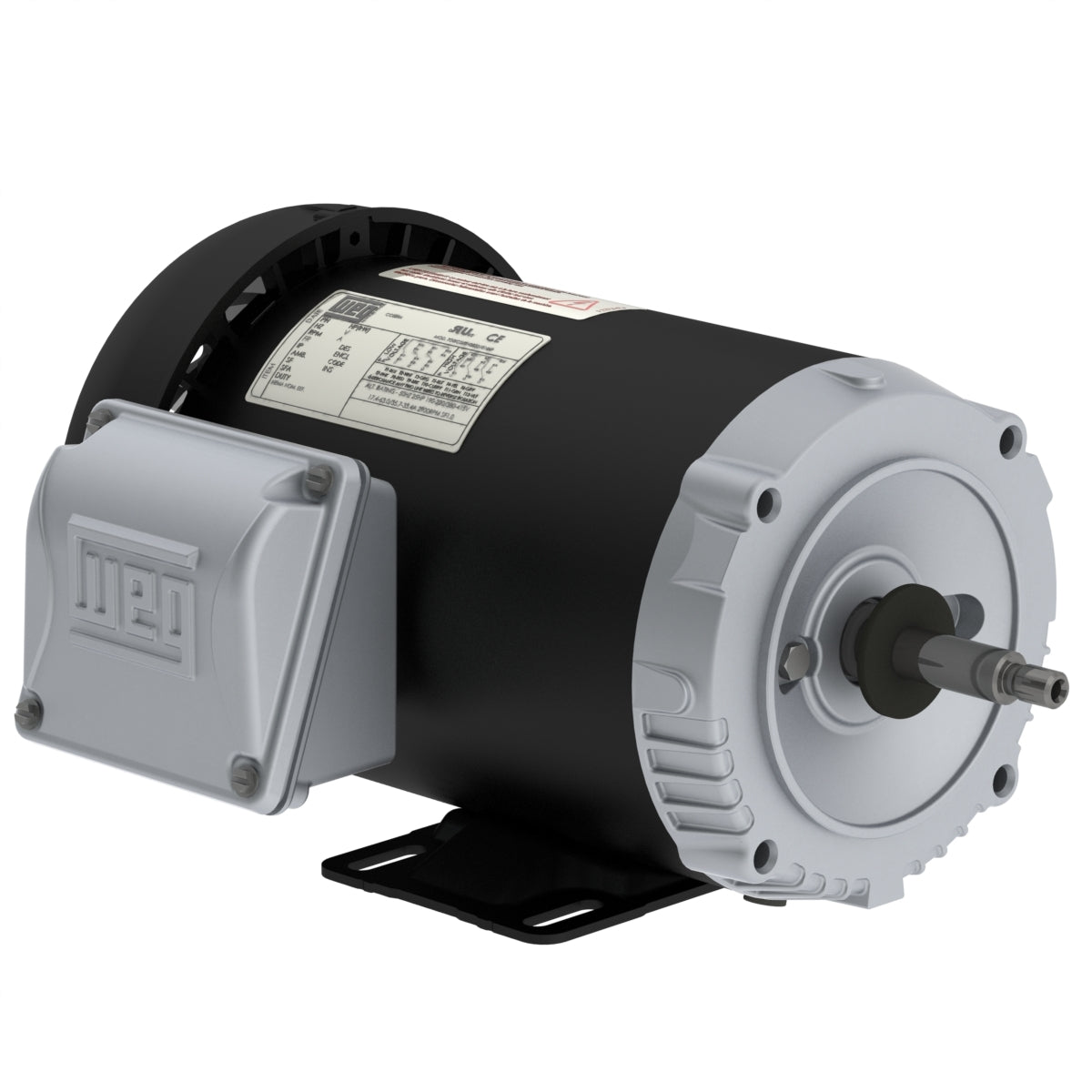

Weg Electric 00158ET3J56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 380/660 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

00158ET3J56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 380/660 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 380/660 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
