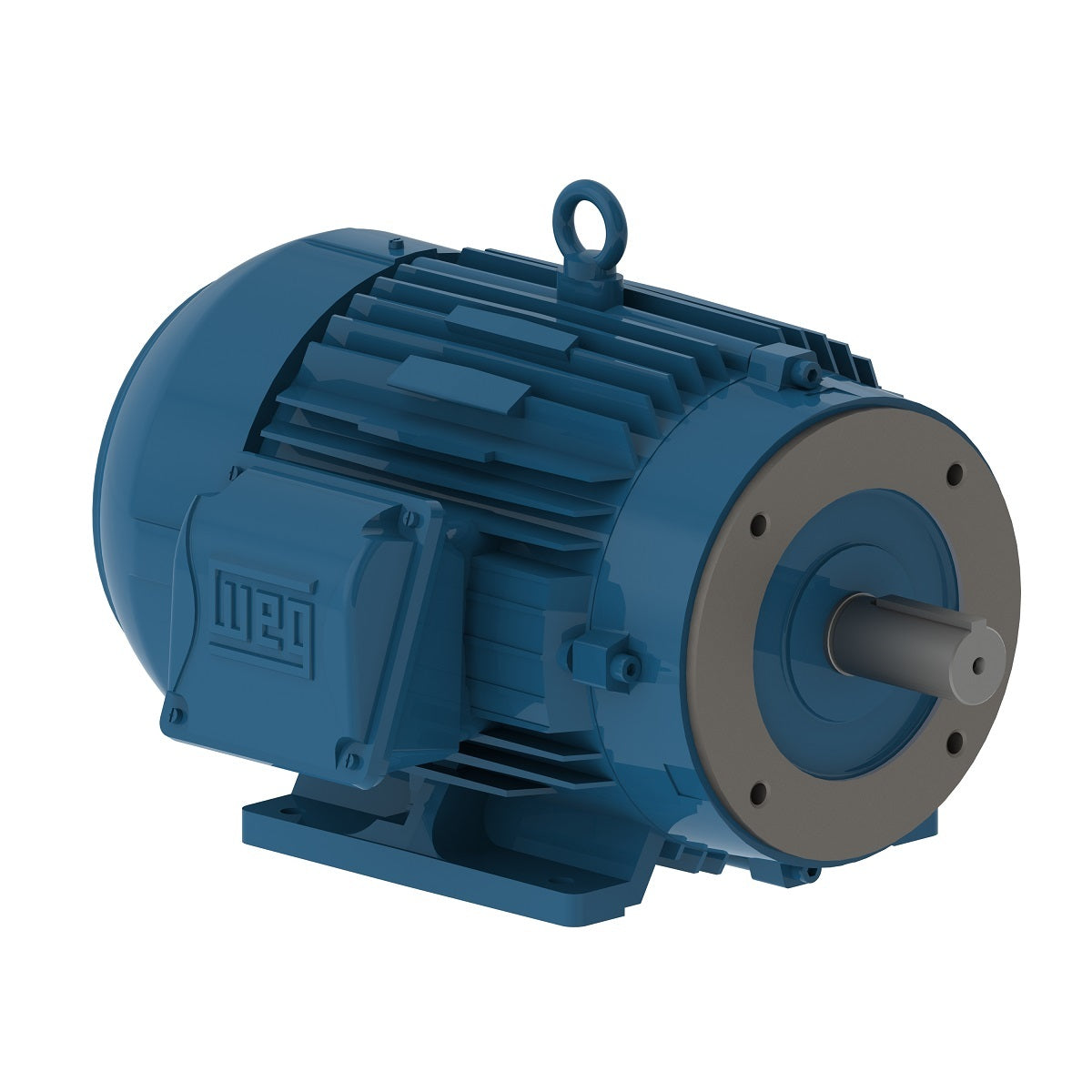

Weg Electric 00158NT3FVD145TC-W22, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460 Vac, TENV, 3 PH, Foot-mounted, Multimounting.

00158NT3FVD145TC-W22, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460 Vac, TENV, 3 PH, Foot-mounted, Multimounting.

Engineering Data

Motor designed specifically for Inverter Operation, allowing its use in applications where 1000:1 constant torque turndown ratio is required.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TENV
