Industrial Motors

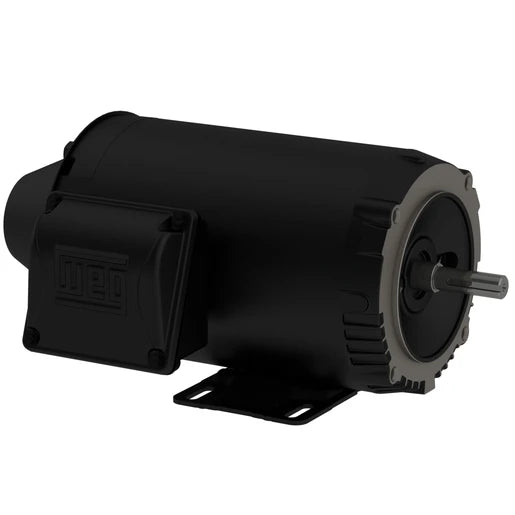

Weg Electric 00158NT3FVD56C-S, 1.5 Hp, 1800 Rpm, 56CZ, 230/460 Vac, 3 PH, TENV, Foot-Mounted, 18597803

Weg Electric 00158NT3FVD56C-S, 1.5 Hp, 1800 Rpm, 56CZ, 230/460 Vac, 3 PH, TENV, Foot-Mounted, 18597803

$640.80
$640.80
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00158NT3FVD56C-S, 1.5 Hp, 1800 Rpm, 56CZ, 230/460 Vac, 3 PH, TENV, Foot-Mounted, 18597803

Specifications

Manufacturer Part Number 00158NT3FVD56C-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 1.5HP 4P 56CZ WCF2
Type Vector Duty
Horsepower 1.5 hp
Kilowatts 0.75 kW
Speed 1,800 RPM
Number of Poles 4
Phase 3
Frequency 60 Hz
NEMA Frame 56CZ
AC Voltage 230 VAC, 460 VAC
Nominal Voltage 240 VAC, 480 VAC
Enclosure Totally Enclosed Non-Ventilated
Mounting Foot Mount
Current Rating 1.5 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Rolled Steel
Bearing Type Ball
Shaft Diameter 0.63 "
Overload Protection None
Length 10.22 "
Approvals cCSAus
Net Weight 41.074 lbs
Gross Weight 41.074 lbs
View full details

Attachments
