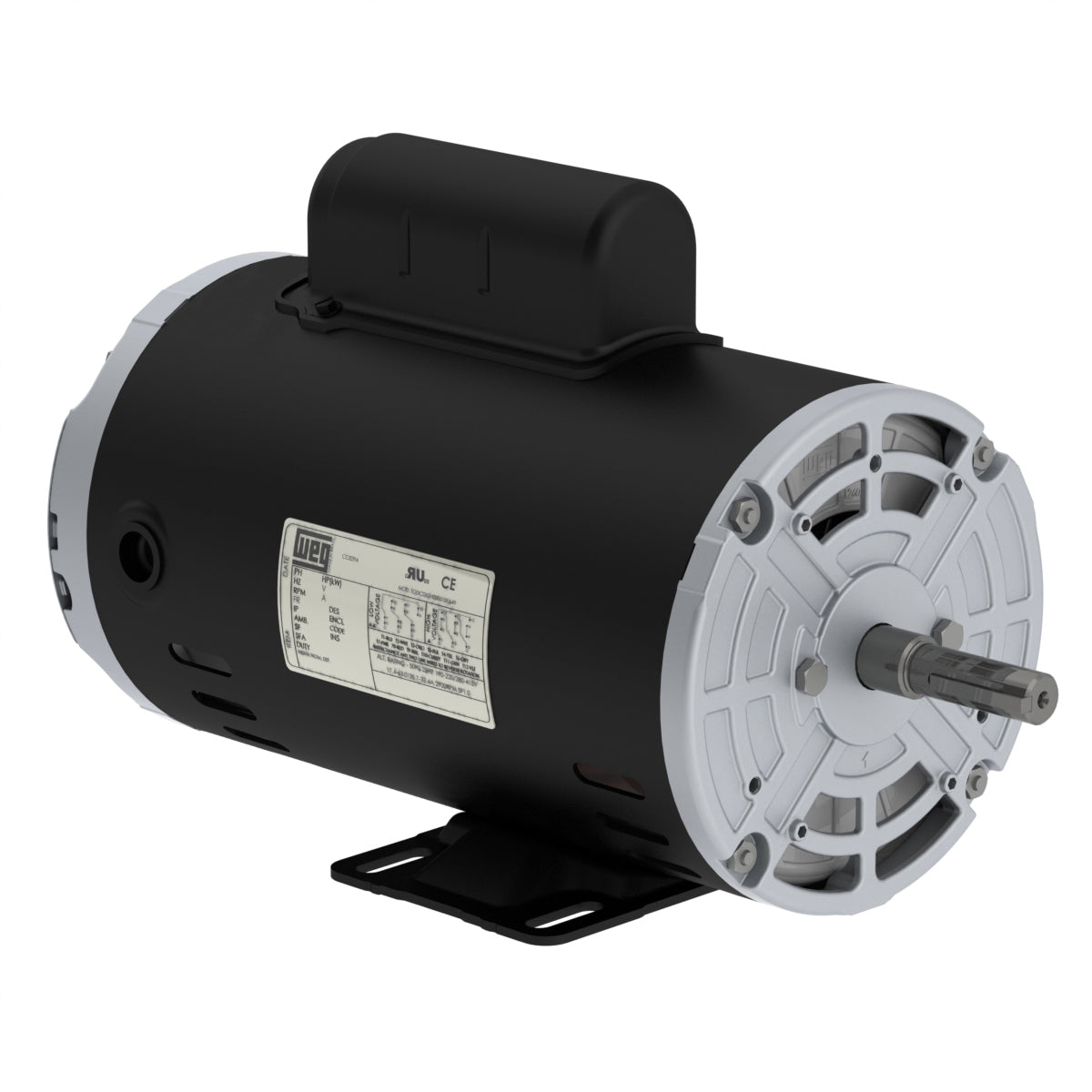

Weg Electric 00158OS1BFB56-S, 1 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

00158OS1BFB56-S, 1 Hp, 1800 Rpm, 56H FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
