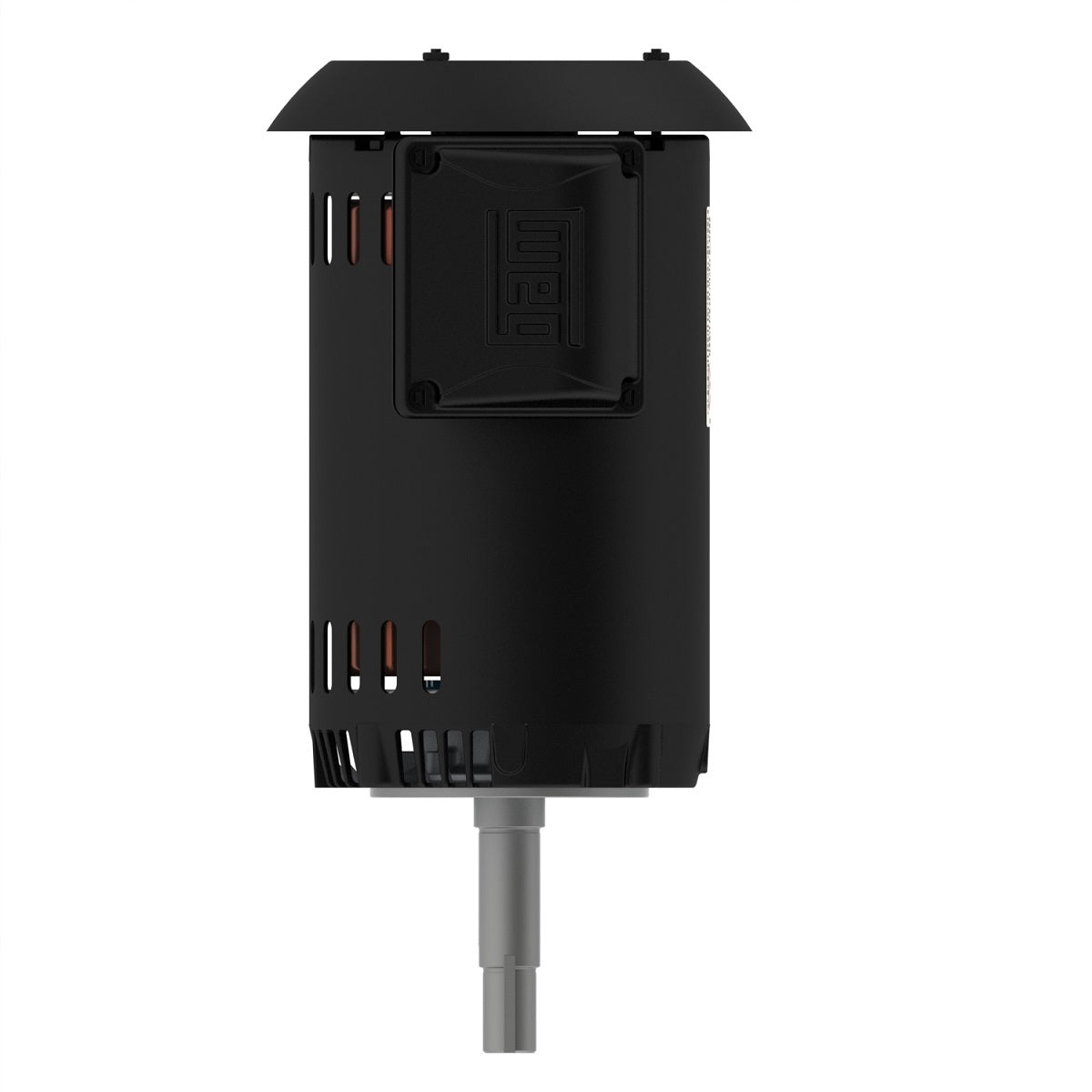

Weg Electric 00158OT3E145JMV-S, 1 1/2 Hp, 1800 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel.

00158OT3E145JMV-S, 1 1/2 Hp, 1800 Rpm, 143/5JM FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP
