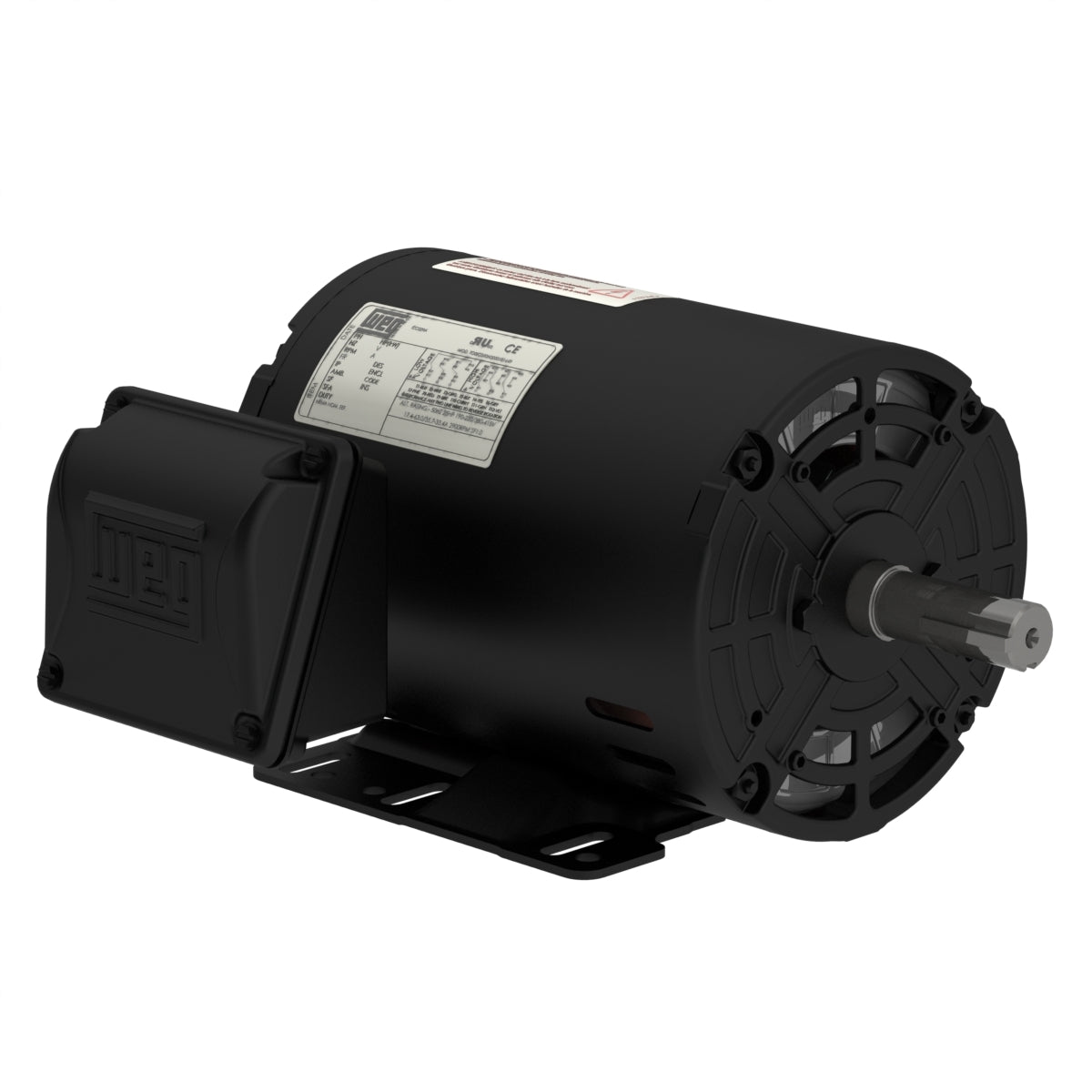

Weg Electric 00158OT3E145T-SG, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

00158OT3E145T-SG, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 4.14/2.07 A
L. R. Amperes 36.0/18.0 A
LRC 8.7x(Code L)
No load current 2.40/1.20 A
Rated torque 4.48 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
