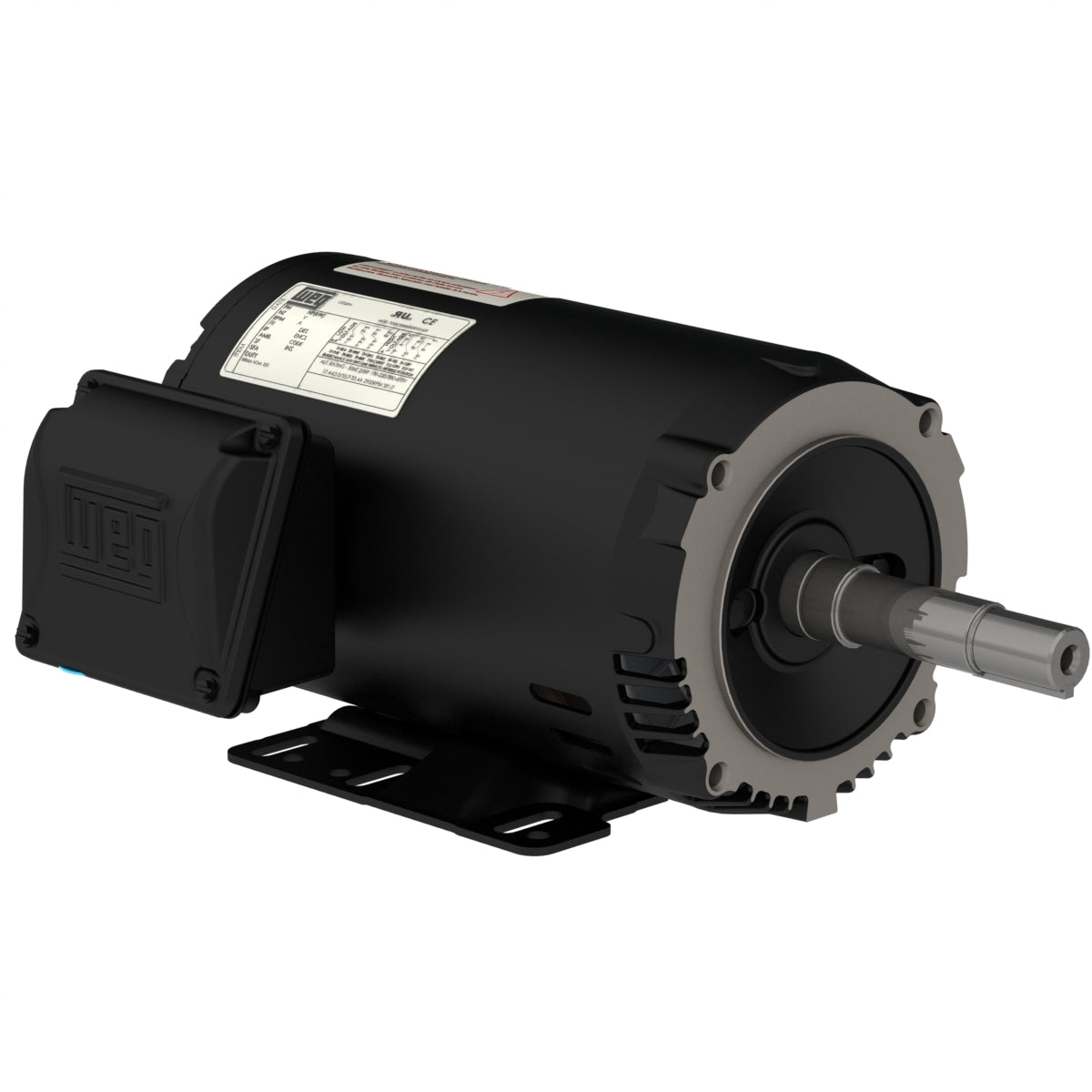

Weg Electric 00158OT3E145TC-S, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460/190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00158OT3E145TC-S, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460/190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
