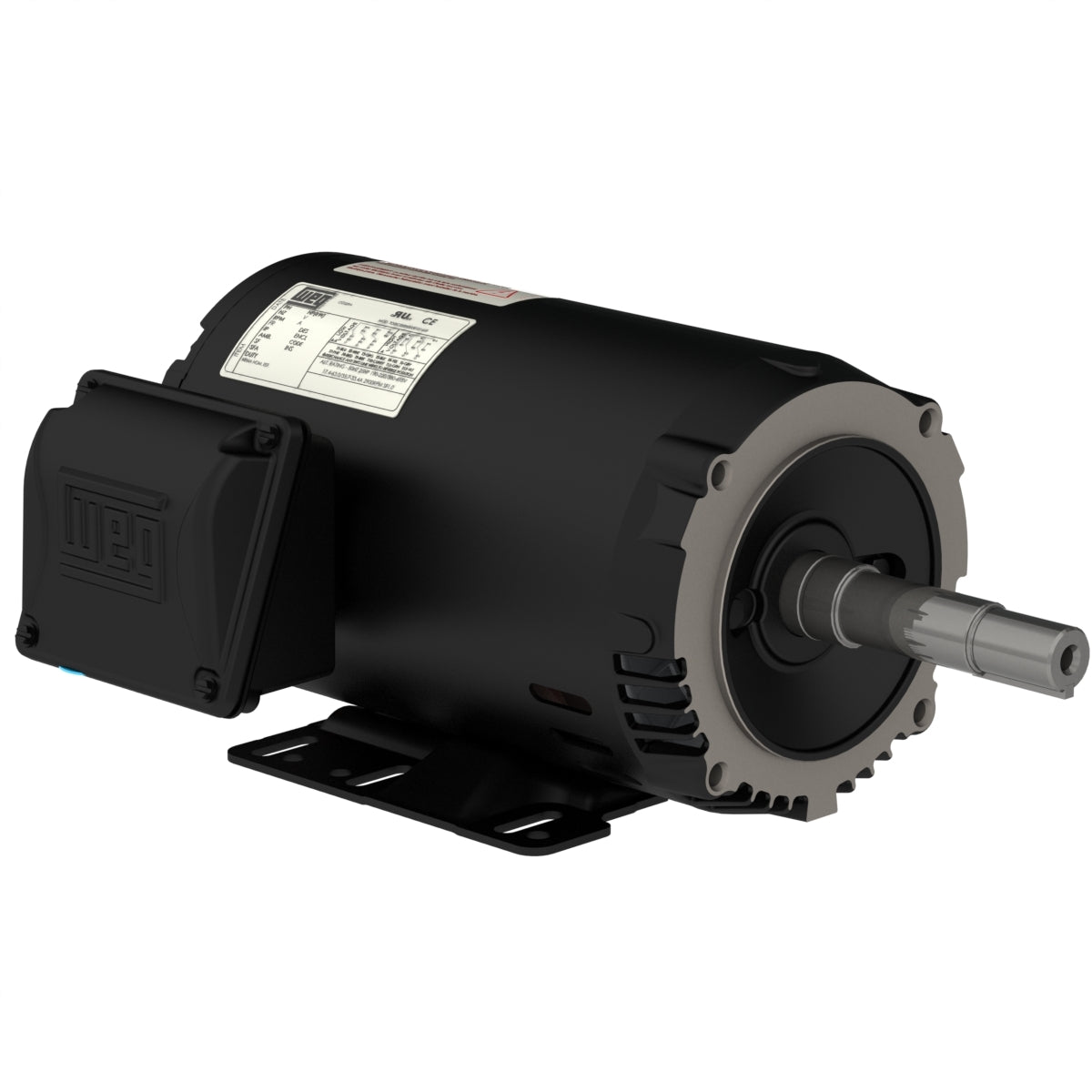

Weg Electric 00158OT3E145TC-SG, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00158OT3E145TC-SG, 1 1/2 Hp, 1800 Rpm, 143/5TC FR, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them.
Product features

Standard NEMA MG-1

Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
