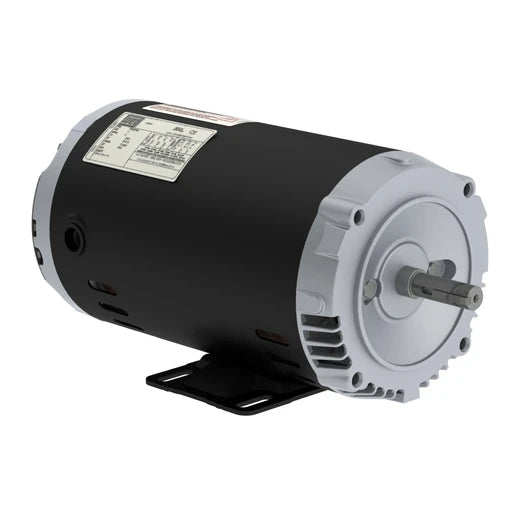

Weg Electric 00158OT3E56-S, 1.5 Hp, 1800 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-Mounted, 12809667

Weg Electric 00158OT3E56-S, 1.5 Hp, 1800 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-Mounted, 12809667

$321.29
$321.29
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 00158OT3E56-S, 1.5 Hp, 1800 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-Mounted, 12809667

Specifications

Manufacturer Part Number 00158OT3E56-S
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description 1.5HP 1800 3 60 208-230/460, J2
Horsepower 1-1/2 hp
Speed 1,800 RPM
RPM 1,800 RPM
Phase 3
Frequency 60 Hz
NEMA Frame 56H
AC Voltage 208 VAC
Nominal Voltage 208 VAC
Mounting Foot Mount
Current Rating 2.1 A
Composition Steel
Net Weight 40.443 lbs
Gross Weight 40.443 lbs
