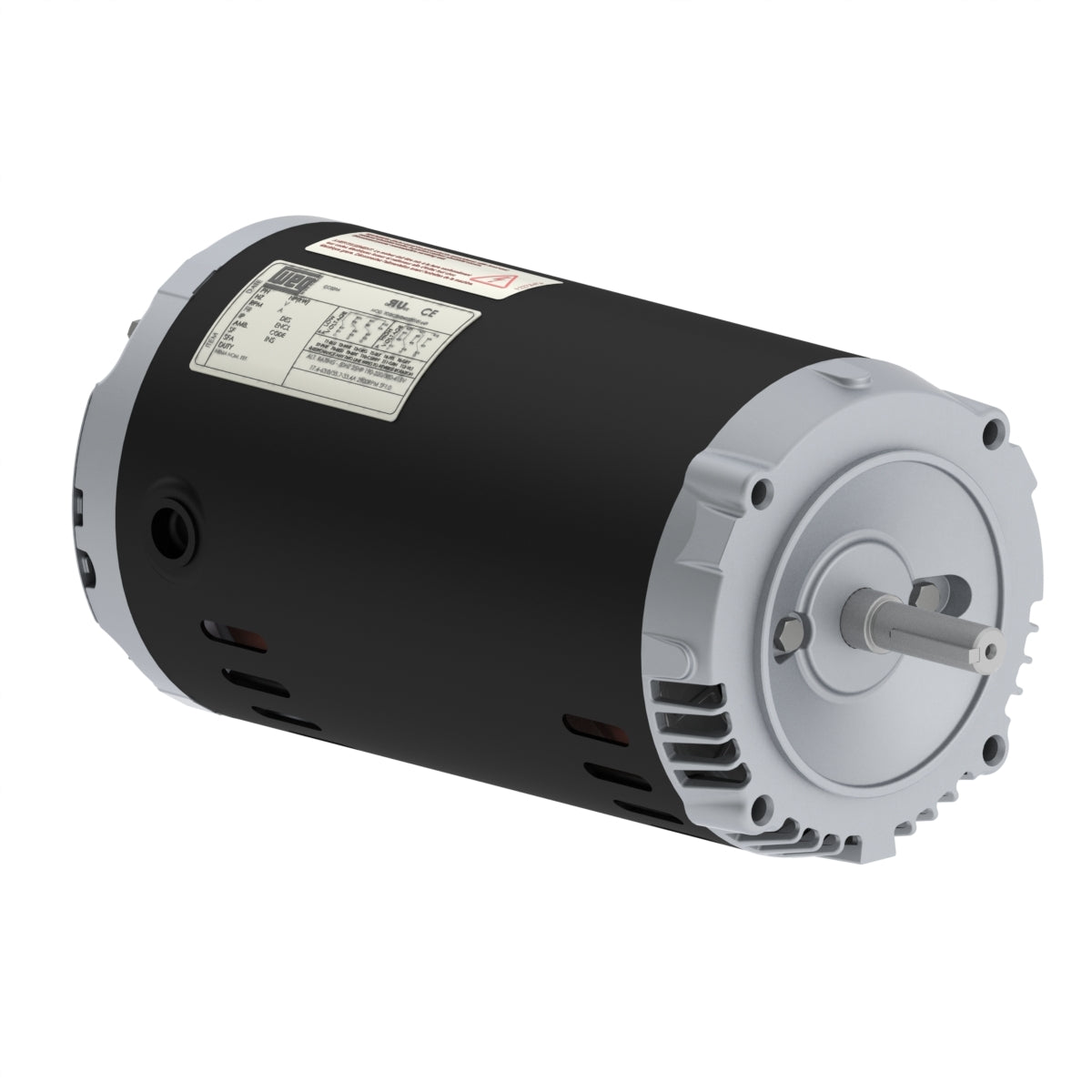

Weg Electric 00158OT3E56CFL-S, 1 1/2 Hp, 1800 Rpm, 56C FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

00158OT3E56CFL-S, 1 1/2 Hp, 1800 Rpm, 56C FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Footless, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 56C
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 4.20/2.10 A
L. R. Amperes 37.0/18.5 A
LRC 8.8x(Code L)
No load current 2.60/1.30 A
Rated torque 4.48 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
