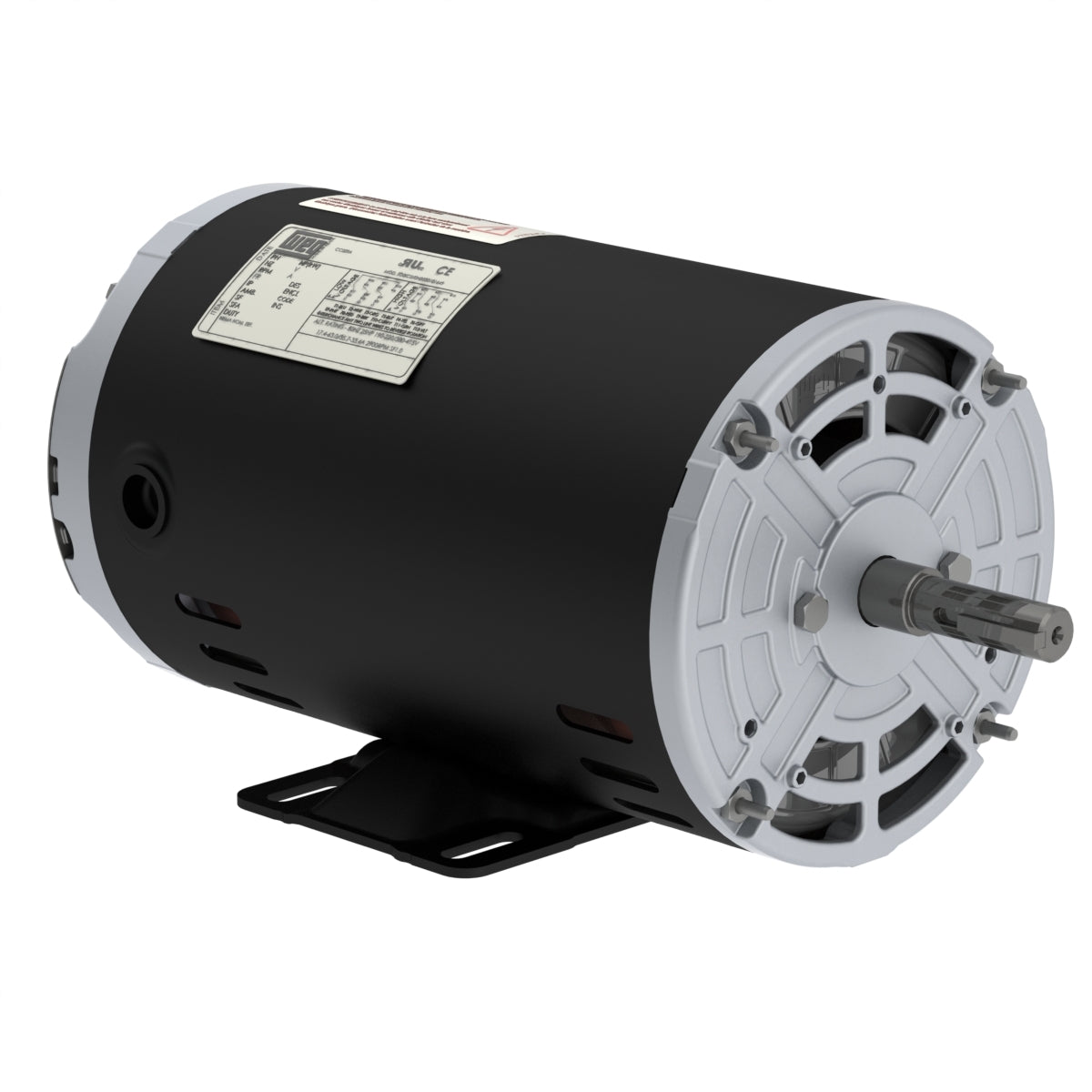

Weg Electric 00158OT3ECD145T-S, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

00158OT3ECD145T-S, 1 1/2 Hp, 1800 Rpm, 143/5T FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Product features

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 4.14/2.07 A
L. R. Amperes 36.0/18.0 A
LRC 8.7x(Code L)
No load current 2.40/1.20 A
Rated torque 4.48 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
