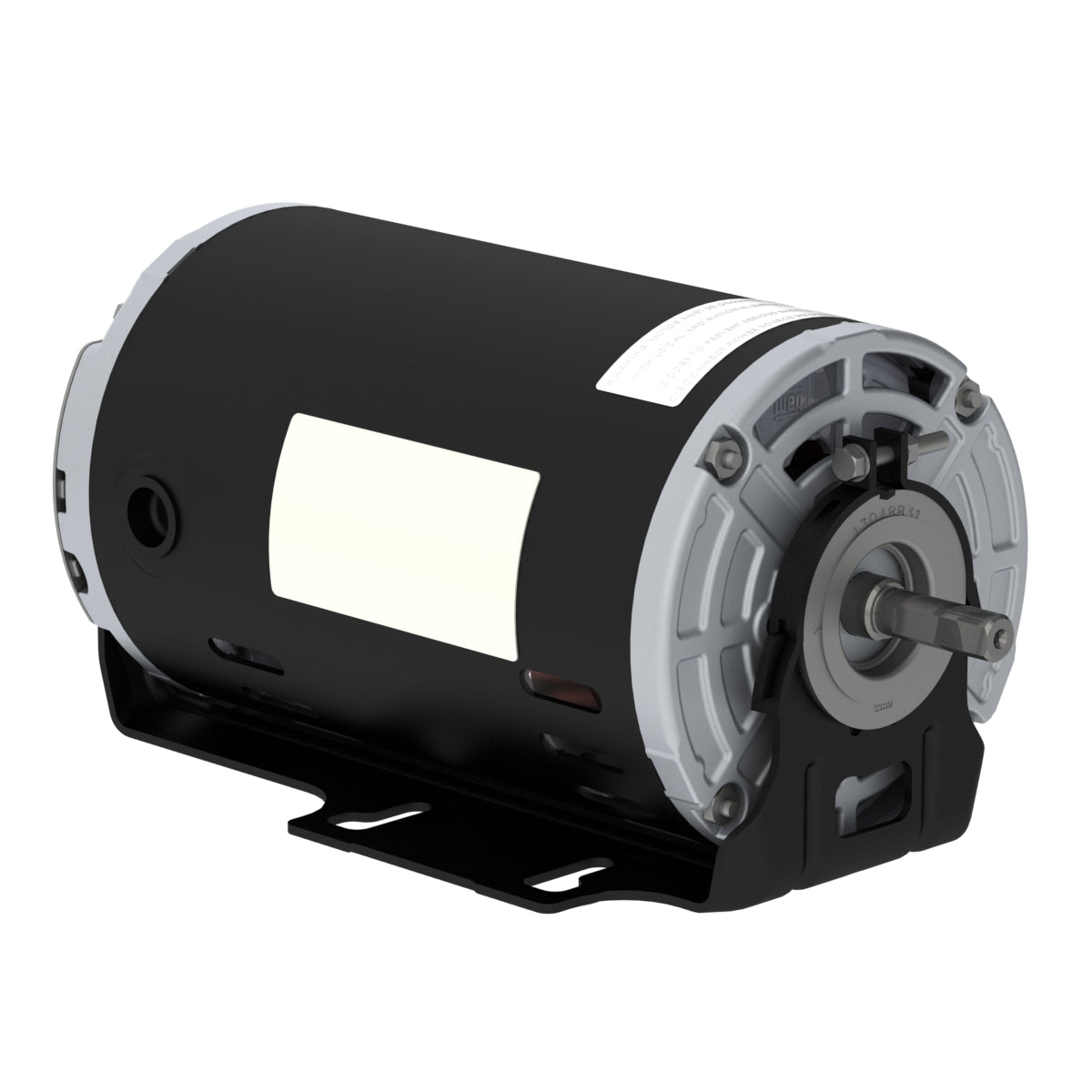

Weg Electric 00158OT3ERB56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

00158OT3ERB56-S, 1 1/2 Hp, 1800 Rpm, 56H FR, 230/460//190-220/380-415 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.

Engineering Data

The W01 (Rolled Steel) motor is the perfect option for applications that require robustness, low weight and high performance in a single product. It has good thermal performance, easy installation and maintenance and it is able to operate on an elastic base. With steel plate frame and aluminum flange, these versatile single-phase motors provide torque and durability for several applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
