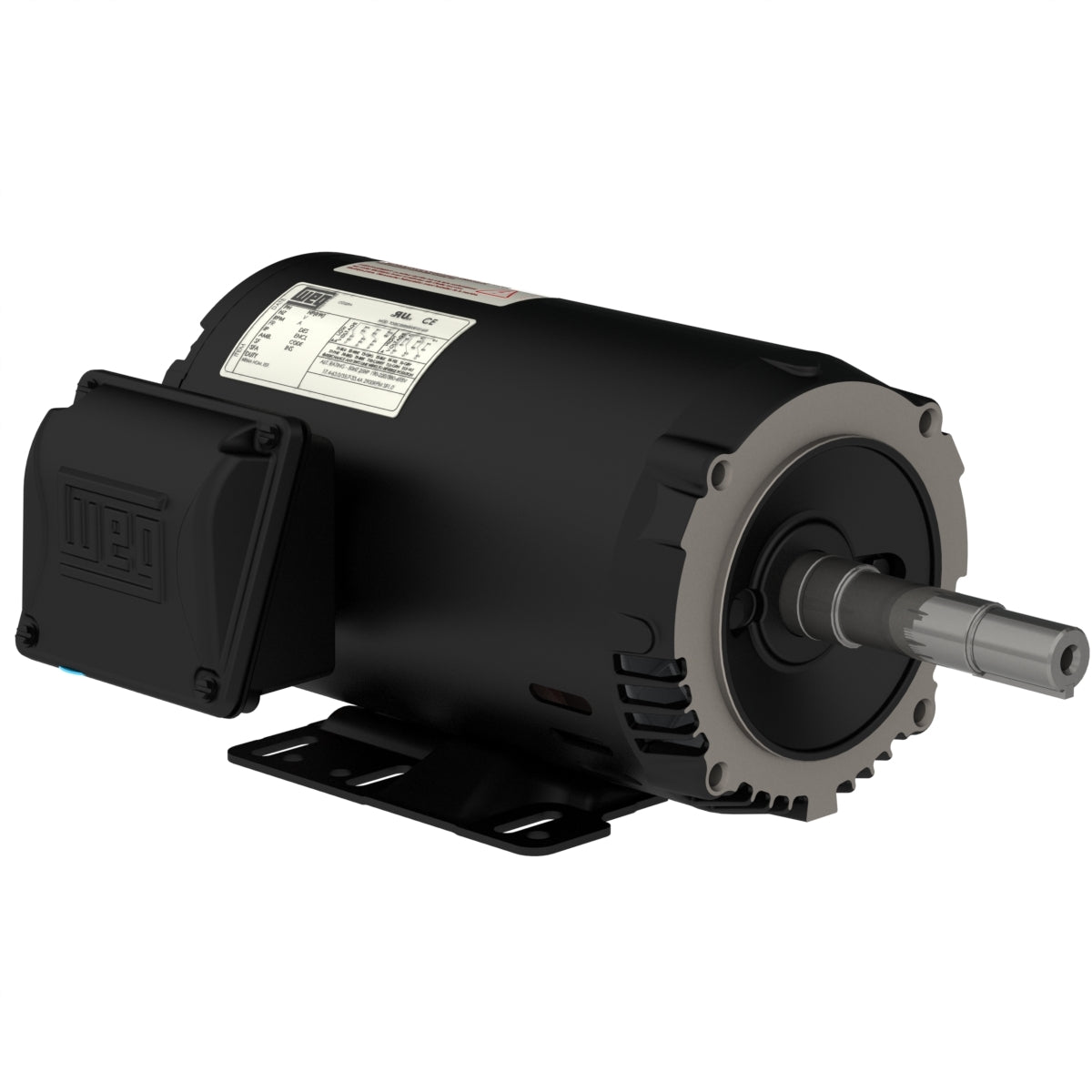

Weg Electric 00158OT3H145JM-SG, 1 1/2 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

00158OT3H145JM-SG, 1 1/2 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 1.5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 143/5JM
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 1.66 A
L. R. Amperes 14.4 A
LRC 8.7x(Code L)
No load current 0.958 A
Rated torque 4.48 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
